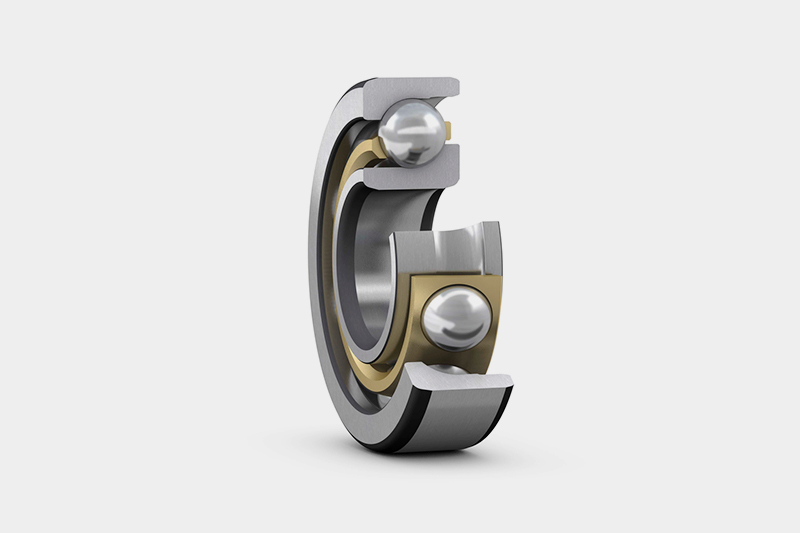

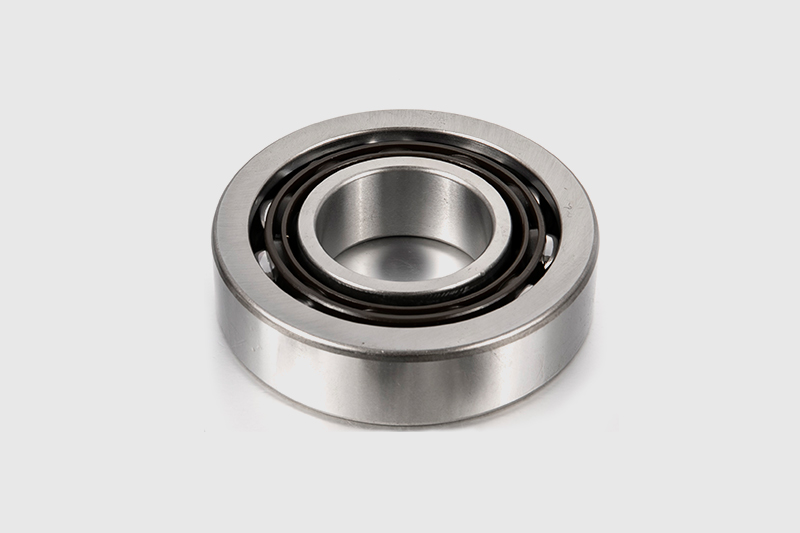

Single row angular contact ball bearings can accommodate axial
loads in one direction only. This type of bearing is typically adjusted against a second bearing. Their bearing rings have an upper and a lower shoulder and are non-separable.
OVERALL DIMENSION | |||||
B TYPE | AC TYPE | C TYPE | d | D | B |
7000B | 7000AC | 7000C | 10 | 26 | 8 |
7200B | 7200AC | 7200C | 30 | 9 | |
7001B | 7001AC | 7001C | 12 | 28 | 8 |
7201B | 7201AC | 7201C | 32 | 10 | |
7301B | 7301AC | 7301C | 37 | 12 | |
7002B | 7002AC | 7002C | 15 | 32 | 9 |
7202B | 7202AC | 7202C | 35 | 11 | |
7302B | 7302AC | 7302C | 42 | 13 | |
7003B | 7003AC | 7003C | 17 | 35 | 10 |
7203B | 7203AC | 7203C | 40 | 12 | |
7303B | 7303AC | 7303C | 47 | 14 | |
7004B | 7004AC | 7004C | 20 | 42 | 12 |
7204B | 7204AC | 7204C | 47 | 14 | |
7304B | 7304AC | 7304C | 52 | 15 | |
7005B | 7005AC | 7005C | 25 | 47 | 12 |
7205B | 7205AC | 7205C | 52 | 15 | |
7305B | 7305AC | 7305C | 62 | 17 | |
7006B | 7006AC | 7006C | 30 | 55 | 13 |
7206B | 7206AC | 7206C | 62 | 16 | |
7306B | 7306AC | 7306C | 72 | 19 | |
7007B | 7007AC | 7007C | 35 | 62 | 14 |
7207B | 7207AC | 7207C | 72 | 17 | |
7307B | 7307AC | 7307C | 80 | 21 | |
7008B | 7008AC | 7007C | 40 | 68 | 15 |
7208B | 7208AC | 7208C | 80 | 18 | |
7308B | 7308AC | 7308C | 90 | 23 | |
7009B | 7009AC | 7009C | 45 | 75 | 16 |
7209B | 7209AC | 7209C | 85 | 19 | |
7309B | 7309AC | 7309C | 100 | 25 | |
7010B | 7010AC | 7010C | 50 | 80 | 16 |
7210B | 7210AC | 7210C | 90 | 20 | |
7310B | 7310AC | 7310C | 110 | 27 | |
7011B | 7011AC | 7011C | 55 | 90 | 18 |
7211B | 7211AC | 7211C | 100 | 21 | |
7311B | 7311AC | 7311C | 120 | 29 | |
7012B | 7012AC | 7012C | 60 | 95 | 18 |
7212B | 7212AC | 7212C | 110 | 22 | |
7312B | 7312AC | 7312C | 130 | 31 | |
7013B | 7013AC | 7013C | 65 | 100 | 18 |
7213B | 7213AC | 7213C | 120 | 23 | |
7313B | 7313AC | 7313C | 140 | 33 | |
7014B | 7014AC | 7014C | 70 | 110 | 20 |
7214B | 7214AC | 7214C | 125 | 24 | |
7314B | 7314AC | 7314C | 150 | 35 | |
7015B | 7015AC | 7015C | 75 | 115 | 20 |
7215B | 7215AC | 7215C | 130 | 25 | |
7315B | 7315AC | 7315C | 160 | 37 | |
7016B | 7016AC | 7016C | 80 | 125 | 22 |
7216B | 7216AC | 7216C | 140 | 26 | |
7316B | 7316AC | 7316C | 170 | 39 | |
7017B | 7017AC | 7017C | 85 | 130 | 22 |
7217B | 7217AC | 7217C | 150 | 28 | |
7317B | 7317AC | 7317C | 180 | 41 | |
7018B | 7018AC | 7018C | 90 | 140 | 24 |
7218B | 7218AC | 7218C | 160 | 30 | |
7318B | 7318AC | 7318C | 190 | 43 | |
7019B | 7019AC | 7019C | 95 | 145 | 24 |
7219B | 7219AC | 7219C | 170 | 32 | |
7319B | 7319AC | 7319C | 200 | 45 | |
7020B | 7020AC | 7020C | 100 | 150 | 24 |
7220B | 7220AC | 7220C | 180 | 34 | |
7320B | 7320AC | 7320C | 215 | 47 |
