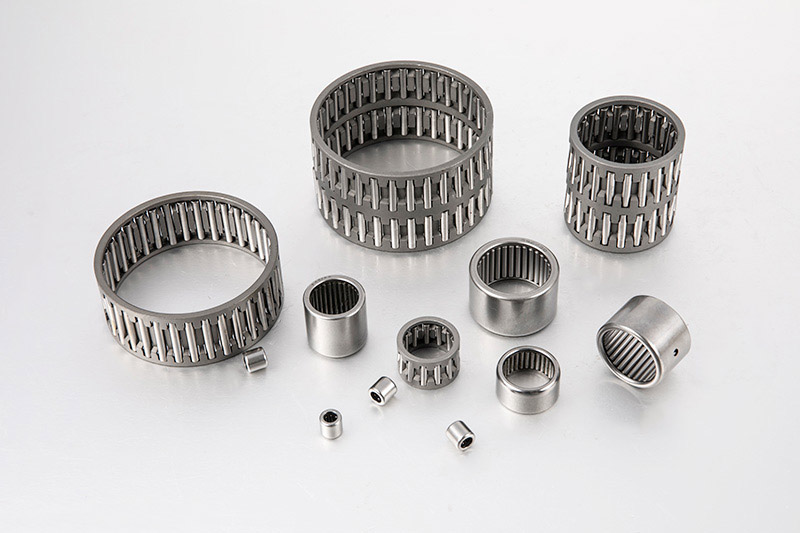

Drawn cup Stainless Steel Needle Roller Bearings

Drawn cup Stainless Steel Needle Roller Bearings

SYSTEM DESCRIPTION:

Drawn cup Stainless Steel Needle Roller Bearings

PRODUCT DETAILS:

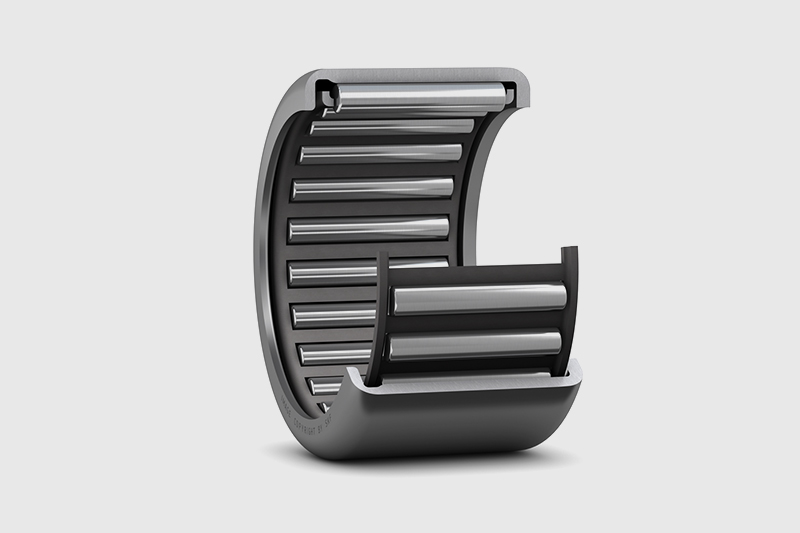

The outer ring of drawn cup needle roller bearing is punched with the steel seet. It has the small sectional height and the large load carrying capacity and is suitable for economic mass production.

The interference fit between outer ring and bearing housing is applied to this kind of needle roller bearing without axial fixing device. Even for the condition of high load, it fully maintains bearing function either. In addition, with the large grease- -storage capacity, it is unnecessary to add grease for a long-term operation.
Since one end of the close- -end bearing is sealed, it is suitable for the end of shaft with bearing the small axial sliding force.

Model HK, TA, TLA, open- end drawn cup needle roller bearings with retainer,

Model BK close- -end drawn cup needle roller bearing with retaier,

Model SCE, BA, J, JH, drawn cup needle rolrr bearings (Inch series).

Bearing No. Shaft Diameter Mass  Boundary Dimensions Basic Load Rating Limiting Speed
Approx Fw D C Dynamic Static Grease  Oil
mm g mm N rpm
HK0306TN 3 1 3 6.5 6 1320 950 3600 6000
BK0306TN 1 3 6.5 6 1320 950 3600 6000
HK0408TN 4 1.6 4 8 8 1540 1070 24000 40000
BK0408TN 1.8 4 8 8 1540 1070 24000 40000
HK0509TN 5   5 11 9 2200 1790 21600 36000
HK0509 2 5 9 9 2200 1790 21600 36000
BK0509 2.1 5 9 9 2200 1790 21600 36000
HK05010   5 9 10
HK0606 6   6 10 6
HK0607 1.8 6 10 7 1600 1400 18000 30000
HK0608 2.1 6 10 8 1830 1550 19200 32000
BK0608 2.2 6 10 8 1830 1550 19200 32000
HK0609 2.2 6 10 9 2650 2400 18000 30000
BK0609 2.6 6 10 9 2650 2400 18000 30000
HK0611 2.3 6 10 11 1700 1500 17400 29000
HK06x12x8 2.5 6 12 8 2230 2010 19800 33000
HK0708 7   7 11 8 2800 2150 16200 27000
HK0709 2.3 7 11 9 2800 2150 16200 27000
BK0709 2.9 7 11 9 2800 2150 16200 27000
HK0712   7 11 12
HK07x12x08 2.2 7 12 8 300 3220 22200 37000
HK07x12x09 2.4 7 12 9 3400 3150 22200 37000
HK0808 8 2.7 8 12 8 2550 2400 12600 21000
HK0808TN   8 12 8
BK0808 3 8 12 8 2550 2400 12600 21000
HK0810 3 8 12 10 3700 3450 12600 21000
BK0810 3.4 8 12 10 3700 3450 12600 21000
HK0812   8 12 12
HK08x14x10 5.35 8 14 10 3800 3950 15000 25000
BK08x14x10 5.8 8 14 10 3800 3950 15000 25000
HK08x14x12 6.6 8 14 12 4100 4320 15000 25000
HK0908 9 3 9 13 8 3650 4050 15000 25000
BK0908 3.4 9 13 10 3650 4050 15000 25000
HK0910 4 9 13 10 4050 4250 15000 25000
BK0910 4.3 9 13 10 4050 4250 15000 25000
HK0910 4.1 9 13 11 4300 4700 15000 25000
HK0912 4.6 9 13 12 5000 6000 15000 25000
BK0912 4.9 9 13 12 5000 6000 15000 25000
HK09X15X10 5.6 9 15 10 5300 6300 15000 25000
HK10X13X08 10 3.5 10 13 8 4100 4800 12000 20000
HK1010 4.1 10 14 10 3900 4800 11400 19000
BK1010 4.3 10 14 10 3900 4800 11400 19000
HK1012 4.8 10 14 12 5000 6300 11400 19000
BK1012 5 10 14 12 5000 6300 11400 19000
HK1015 6 10 14 15 6700 7800 11400 19000
BK1015 6.2 10 14 15 6700 7800 11400 19000
HK10x15x15 6.5 10 15 15 6800 8800 10800 18000
HK10x16x10 6.5 10 16 10 6800 8800 10800 18000
BK10x16x10 6.8 10 16 10 6800 8800 10800 18000
HK10x16x12 7.5 10 16 12 6800 8800 10800 18000
HK10x16x15 11 10 16 15 6800 8800 11400 19000
HK10x17x15 11.5 10 17 15 7200 8000 11400 19000
HK10x18x12 8.5 10 18 12 7200 8000 11400 19000
HK1208 12 3.3 12 16 8 7200 8000 11400 19000
HK1210 4.6 12 16 10 4150 5800 11400 19000
BK1210 5.2 12 16 10 4150 5800 11400 19000
HK1212 5.6 12 16 12 3800 5100 9000 15000
BK1212 6.2 12 16 12 3800 5100 9000 15000
HK12x17x12 7.5 12 17 12 5100 7000 9000 15000
HK12x17x15 9.5 12 17 15 5100 7000 9000 15000
HK12x17x18 11 12 17 18 5100 7000 9000 15000
HK12x18x12 9.1 12 18 12 5500 6300 10200 17000
BK12x18x12 10.3 12 18 12 5500 6300 10200 17000
HK12x18x14 10.6 12 18 14 6500 6300 9000 15000
HK12x19x12 10 12 19 12 6800 7400 9000 15000
HK1311 13 8.5 13 19 11 6300 6300 8400 14000
HK1312 8.9 13 19 12 6200 7100 10200 17000
BK1312 11.2 13 19 12 6200 7100 10200 17000
HK13.5x19x12 13.5   13.5 19 12 6250 7590 9600 16000
HK13.5x20x12 10.8 13.5 20 12 6250 7590 9600 16000
HK1410 14 8.3 14 20 10 6700 7000 9600 16000
BK1410 12.1 14 20 10 6700 7000 9600 16000
HK1412 10.5 14 20 12 6800 7500 9600 16000
HK1416 13.9 14 20 16 7300 9000 8400 14000
HK1418   14 20 18 7300 9000 8400 14000
HK15x20x12 15 8.4 15 20 12 5800 6000 8400 14000
HK15x20x16 11.4 15 20 16 6000 6200 8400 14000
HK15x20x20 13.8 15 20 20 6100 6400 8400 14000
HK1512 11.1 15 21 12 7000 8400 8400 14000
BK1512 12.7 15 21 12 7000 8400 8400 14000
HK1514 12.7 15 21 14 8500 10400 7800 13000
HK1515 14.2 15 21 15 9100 11400 7800 13000
BK1515   15 21 15 9800 11400 8400 14000
TA1515   15 22 15   11400 8400 14000
TA1515Z   15 22 15
HK1516 15 15 21 16 9800 11400 8400 14000
BK1516 16.5 15 21 16 9800 11400 8400 14000
HK1518   15 21 18
HK1520   15 21 20
HMK1520   15 21 20
HK1522 20.4 15 21 22 10400 16500 8400 14000
BK1522 22 15 21 22 10400 16500 8400 14000
HK15x22x12 12.5 15 22 12 14300 18400 7800 13000
HK15x22x12.5 13.5 15 22 12.5 14300 18400 7800 13000
HK16X21X06 16 5.5 16 21 6 4200 5300 7200 12000
HK16X21X09 7.5 16 21 9 4400 5600 7200 12000
HK1610   16 22 10
HK1612 11.7 16 22 12 7100 9200 8400 14000
BK1612 13.8 16 22 12 7100 9200 8400 14000
HK1612K   16 22 12
HK1614 14.4 16 22 14 8000 9900 7200 12000
HK1616 15.8 16 22 16 10100 14300 8400 14000
BK1616 17.6 16 22 16 10100 14300 8400 14000
HK1616-ASI   16 22 16
HK1617 18 16 22 17 12900 17200 7200 12000
HK1620   16 22 20
HK1622 21.7 16 22 22 11100 17400 8400 14000
BK1622   16 22 22 11100 17400 8400 14000
HK17X21.5X15 17 10 17 21.5 15 6300 8600 6600 11000
HK1712 12.2 17 23 12 6900 9300 7800 13000
BK1712 14.5 17 23 12 6900 9300 8160 13600
HK1714 14 17 23 14 6800 10200 6000 10000
HK1716 15.9 17 23 16 8500 12500 6000 10000
BK1716   17 23 16 8500 12500 6000 10000
HK1718 19 17 23 18 9500 10600 6000 10000
HK1720   17 23 20 10000 11800 6000 10000
HK1722 17 17 23 22
HK17x24x15 17 17 24 15 11200 12800 6000 10000
HK17x25x14 17.7 17 25 14 13100 14700 6000 10000
HK17x25x15.5 20 17 25 15.5 9320 10400 6000 10000
HK17x25x18 23.5 17 25 18 9500 10600 6600 11000
HK1812 18 13.1 18 24 12 7100 9900 7200 12000
BK1812 14.9 18 24 12 7100 9900 7200 12000
HK1816 17.5 18 24 16 10650 15300 7200 12000
BK1816 19.9 18 24 16 10600 15300 7200 12000
HK18X24X20 18 18 24 20
HMK1825   18 25 25
HK19X27X16 19 23 19 27 16 8100 9500 6300 10500
HK2010 20 11.8 20 26 10 5900 7200 6000 10000
BK2010 14 20 26 10 5900 7200 6000 10000
HK2011 12 20 26 11 7500 9200 5400 9000
HK2012 14.1 20 26 12 7600 10100 6000 10000
BK2012 16.7 20 26 12 7600 10100 6000 10000
HK2014 15.7 20 26 14 9700 18100 5400 9000
HK2016 19.3 20 26 16 11700 29100 6000 10000
BK2016 22.3 20 26 16 11700 29100 6000 10000
HK2018 23.3 20 26 18 7900 12800 5400 9000
HK2020 24.1 20 26 20 13700 24000 6000 10000
BK2020 27.1 20 26 20 13700 24000 6000 10000
HK2025 28 20 26 25 9100 14800 5940 9900
HK2030 41 20 26 30 21800 40000 6060 10100
BK2030 43 20 26 30 21800 40000 6060 10100
HK20x27x18   20 27 18 26000 47200 5940 9900
HK20x27x20   20 27 20 26300 47800 5940 9900
HK20x27x30   20 27 30 28500 48800 5940 9900
HK20x28x16 28.5 20 28 16 29600 49800 5940 9900
HK20x29x18 41 20 29 18 30900 54600 5940 9900
HK22X28X7.5TN 22 8.8 20 29 7.5 5200 7000 6060 10100
HK2210 12.3 22 28 10 7200 9500 6060 10100
HK2212 15 22 28 12 8100 10400 6060 10100
BK2212 18.1 22 28 12 8100 10400 6060 10100
HK2216 20.9 22 28 16 11400 18100 6060 10100
BK2216 24.3 22 28 16 11400 18100 6060 10100
HK2220 26.2 22 28 20 14500 25000 6060 10100
BK2220 29.9 22 28 20 14500 25000 6060 10100
HK2230 32 22 28 30 17500 30400 5400 9000
HMK2225   22 29 25
HK2230 32 22 28 30 17500 30400 5400 9000
HK22X29X25 37 22 29 25 17500 30400 5400 9000
HK22X25X30 43 22 29 30 17500 30400 5400 9000
HK22X30X14 21.9 22 30 14 17500 30400 5400 9000
HK24x30x7.5TN 24 10.6 24 30 7.5 5800 7200 6000 10000
HK2512 25 20 25 32 12 10000 14200 5400 9000
BK2512 23.2 25 32 12 10000 14200 5400 9000
HK2514 21.9 25 32 14 13600 18700 5400 9000
HK2516 27.3 25 32 16 13600 20000 5400 9000
BK2516 31 25 32 16 13600 50000 5400 9000
HK2518 28.2 25 32 18 17500 25800 5400 9000
HK2520 34.1 25 32 20 17900 30000 5400 9000
BK2520 38.7 25 32 20 17900 30000 5400 9000
BK2525 40 25 32 25 22200 36700 5400 9000
HK2526 44.8 25 32 26 22500 42000 5400 9000
BK2526 49 25 32 26 22500 42000 5400 9000
HK2538 64.7 25 32 38 30000 58000 5400 9000
BK2538 69 25 32 38 30000 58000 5400 9000
HK25X33X10 17 25 33 10 34800 69600 5400 9000
HK25X33X15 27.4 25 33 15 35700 70000 5400 9000
HK25X35X20 44.9 25 35 20 36100 78650 5400 9000
HK2812 28   28 35 12
HK2816 30.1 28 35 16 15400 22500 5220 8700
BK2816 34.1 28 35 16 15400 22500 5220 8700
HK2818 31.7 28 35 18 18500 29300 5220 8700
HK2820 37.6 28 35 20 18900 32000 5220 8700
BK2820 43 28 35 20 18900 32000 5220 8700
HK2825   28 35 25
HK2830   28 35 30
HK2833   28 35 33
HK3012 30 24 30 37 12 10100 16200 4860 8100
BK3012 27.9 30 37 12 10100 16200 4860 8100
HK3016 32 30 37 16 15200 27000 4860 8100
BK3016 37.1 30 37 16 15200 27000 4860 8100
HK3018   30 37 18 19200 31500 4860 8100
HK3020 40.1 30 37 20 19700 33500 4860 8100
BK3020   30 37 20 19700 33500 4860 8100
HK3020-K   30 37 20     4860 8100
HMK3020   30 40 20
HK3024   30 37 24
HMK3025   30 40 25
HK3026 52.9 30 37 26 24000 50000 4860 8100
BK3026 29.4 30 37 26 24000 50000 4860 8100
HK3030   30 37 30
HMK3030   30 40 30
HK3038 76.1 30 37 38 32500 74000 4860 8100
BK3038 82.5 30 37 38 32500 74000 4860 8100
HK30x38x12 28 30 38 12 38100 80000 4860 8100
HK30x38x16 32.7 30 38 16 39000 82000 4860 8100
HK30x38x24 49 30 38 24 39910 88800 4860 8100
HK30x38x32 69 30 38 32 38890 88700 4860 8100
HK3232 32 66.4 32 39 32 22600 54300 4260 7100
HK32x40x32 72.7 32 39 32 27990 59890 4260 7100
HK35x43x16 35 37 35 42 16 24200 47100 4260 7100
HK35x43x25 60.5 35 43 25 24440 48200 3720 6200
HK35x43x32 80 35 43 32 24870 48880 3720 6200
HK4012 40 31.1 40 47 12 14000 24300 3780 6300
BK4012 38.2 40 47 12 14000 24300 3780 6300
HK4016 41.4 40 47 16 20000 38500 3780 6300
HK4020 51.8 40 47 20 25500 52000 3780 6300
BK4020 62 40 47 20 25500 52000 3780 6300
HK4512 45 34.8 45 52 12 12900 22500 3480 5800
HK4516 46.2 45 52 16 19300 38000 3480 5800
HK4520 56 45 52 20 22000 51000 3480 5800
BK4520 72 45 52 20 22000 51000 3480 5800
HK5012 50 44.2 50 58 12 23600 57200 3180 5300
HK5020 72 50 58 20 28000 60000 3180 5300
BK5020 87.3 50 58 20 28000 60000 3180 5300
HK5025 90.1 50 58 25 34500 80000 3180 5300
HK5520 55 78 55 63 20 29500 59900 2760 4600
HK6012 60 49.2 60 68 12 12400 29000 2460 4100
HK6020 86 60 68 20 30500 72000 2460 4100
BK6020 105 60 68 20 30500 72000 2460 4100
