Radial Stainless Steel Needle Roller Bearings and Cage Assemblies

Radial Stainless Steel Needle Roller Bearings and Cage Assemblies

SYSTEM DESCRIPTION:

Radial Stainless Steel Needle Roller Bearings and Cage Assemblies

PRODUCT DETAILS:

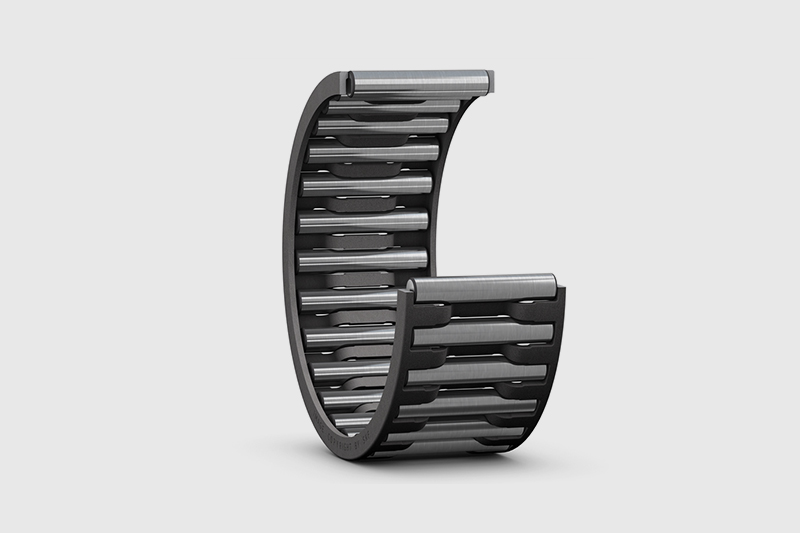

As for Model K, K..D radial needle and retainer assembly, this kind of bearing only has a group of radial needle and retainer assembly. With small outside diameter size, it is suitable for the parts, where the radial sizes are specially limited, used for bearing the radial load. Model K...ZW, K.. .ZWD radial needle and retainer assembly is the double row radial needle and retainer assembly.

As for this kind of bearing, since it has not collar, the surface of journal and the surface of hole at the housing are directly acted as rolling surface with surface hardness HRC 60 and surface roughness Ra no more than 0.63um.

lin order to satisfy the requirement of main machine, this kind of bearing can be made in spilt bearing,convenient for mounting. Model K... D represents as the single row split bearing and Model K..ZWD represents as double row split bearing.

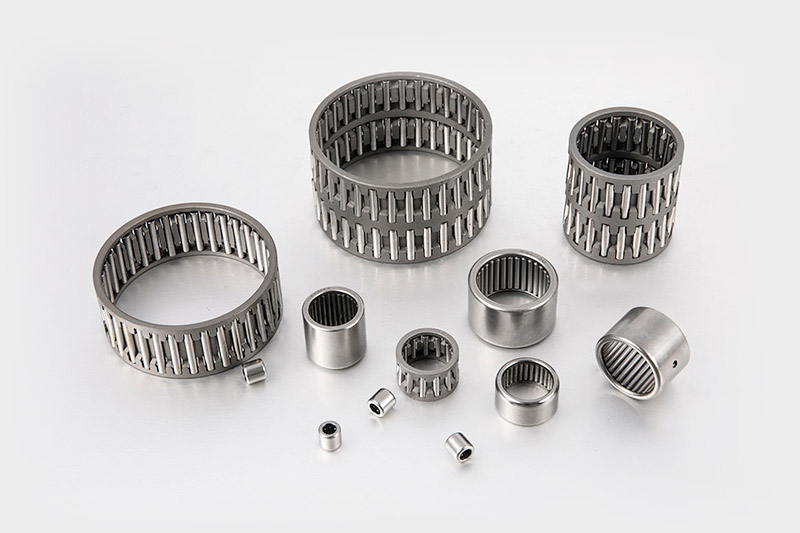

K single- row radial needle roller and cage assembly
K..ZW double--row radial needle roller and cage assembly
K..D partial single- row radial needle roller and cage assembly
K..ZWD double -row radial needle rolllr and cage assemy

Bearing No. Shaft Diameter Mass  Boundary Dimensions Basic Load Rating Limiting Speed
Approx Fw Ew Bc Dynamic Static Grease  Oil
mm g mm N rpm
K3x5x7TN 3 0.3 3 5 7 1.54 1.29 30000 50000
K3x5x9TN 0.4 3 5 9 1.71 1.48
K3x6x7TN 0.4 3 6 7 1.43 0.97 28200 47000
K4x7x7TN 4 0.5 4 7 7 2.33 1.84 25800 43000
K4x7x10TN 0.7 4 7 10 2.35 1.92 23400 39000
K5x8x8TN 5 0.7 5 8 8 2300 1880 22200 37000
K5x8x10TN 0.9 5 8 10 2800 2450 22200 37000
K6x9x8TN 6 0.8 6 9 8 2560 2240 21000 35000
K6x9x10TN 1 6 9 10 3300 3100 21000 35000
K6x10x13TN 1.3 6 10 13 3500 2800 19800 33000
K7x10x8TN 7 0.9 7 10 8 2750 2550 19200 32000
K7x10x10TN 1.1 7 10 10 3350 3400 19200 32000
K8x11x8TN 8 1.1 8 11 8 3000 2900 18000 30000
K8x11x10TN 1.7 8 11 10 3830 3950 18000 30000
K8x11x13TN 1.8 8 11 13 5000 5700 18000 30000
K8x12x10TN 1.3 8 12 10 4900 4600 18000 30000
K9x12x10TN 9 1.6 9 12 10 4200 4700 18000 30000
K9x12x13TN 1.9 9 12 13 5500 6700 18000 30000
K10x13x10TN 10 1.6 10 13 10 4500 5250 16200 27000
K10x13x13TN 2.1 10 13 13 6000 7600 16200 27000
K10x13x16TN 2.2 10 13 16 6300 7800 16200 27000
K10x14x10TN 2.9 10 14 10 7000 7900 16200 27000
K10x14x13TN 4.3 10 14 13 8000 9100 15600 26000
K10x16x12TN 3.7 10 16 12 7000 9300 16200 27000
K12x15x19TN 12 2.7 12 15 9 4120 5210 15000 25000
K12x15x10TN 1.9 12 15 10 4320 5730 15000 25000
K12x15x13TN 2.4 12 15 13 6000 8100 15000 25000
K12x16x8TN 2.9 12 16 8 4200 4700 15000 25000
K12x16x10TN 3.4 12 16 10 6000 6900 15000 25000
K12x16x13TN 3.4 12 16 13 7900 9200 15000 25000
K12x17x13TN 4.4 12 17 13 9300 10000 15000 25000
K12x18x12TN 5 12 18 12 9800 8000 14400 24000
K12x15x20TN 3.8 12 15 20 8200 12000 14400 24000
K14x17x10  14 4 14 17 10 5100 6800 13800 23000
K14x17x17  6.8 14 18 17 9300 14000 13800 23000
K14x18x10  4.8 14 18 10 6800 8300 13800 23000
K14x18x13  6.3 14 18 13 8100 9800 13800 23000
K14x18x14  6.8 14 18 14 9200 12000 13200 22000
K14x18x15 7.3 14 18 15 10000 13000 13800 23000
K14x18x17 8.1 14 18 17 10500 13900 13800 23000
K14x20x12 8.6 14 20 12 9900 10500 13200 22000
K15x18x14 15 5.3 15 18 14 7500 11000 13800 23000
K15x18x17 6.4 15 18 17 9600 15900 13800 23000
K15x19x10 5.1 15 19 10 7200 9000 13200 22000
K15x19x13 7 15 19 13 7200 9000 13200 22000
K15x19x17 8.8 15 19 17 10300 15000 13200 22000
K15x19x24ZW 10.5 15 19 24 12800 20100 13200 22000
K15x22x13 8.9 15 22 13 9700 11000 13200 22000
K15x22x12 10 15 22 12 10000 13000 13200 22000
K15x21x15 13 15 21 15 13800 16000 13200 22000
K15x21x21 18.2 15 21 21 18000 24000 13200 22000
K16x20x10 16 5.7 16 20 10 7600 9700 13200 22000
K16x20x13 7.1 16 20 13 8700 11300 13200 22000
K16x20x17 9.2 16 20 17 11200 16300 13200 22000
K16x21x10 3.7 16 21 10 9000 12000 13200 22000
K16x22x12 10.4 16 22 12 11000 12000 12600 21000
K16x22x13 11.9 16 22 13 12000 13400 12600 21000
K16x22x16 13.7 16 22 16 14300 17000 12600 21000
K16x22x20 16.7 16 22 20 18000 22300 12600 21000
K16x23x14 20 16 23 14 19000 21000 11400 19000
K16x24x20 24.9 16 24 20 21100 23000 12000 20000
K17x21x10 17 5.6 17 21 10 7900 10100 12600 21000
K17x21x13 7.5 17 21 13 10000 14100 12600 21000
K17x21x17 9.5 17 21 17 12000 17400 12600 21000
K17x23x14 11.5 17 23 14 11000 15000 12600 21000
K18x22x10 18 6.1 18 22 10 8200 9900 12000 20000
K18x22x13 7.7 18 22 13 9000 12100 12000 20000
K18x22x17 10.8 18 22 17 11900 17600 12000 20000
K18x24x12 11.6 18 24 12 11200 12900 12000 20000
K18x24x13 12.6 18 24 13 12900 14900 12000 20000
K18x24x13.5 13 18 24 13.5 12900 14900 12000 20000
K18x24x20 19 18 24 20 20000 26500 12000 20000
K18x25x14 14.9 18 25 22 16500 18800 12000 20000
K18x25x22 24.3 18 25 14 22900 28400 12000 20000
K18x26x14 19 18 26 16 18000 20000 10800 18000
K18x28x16 24 18 28 13 19000 18400 11400 19000
K19x23x13 19 8.2 18 23 17 9300 13000 12000 20000
K19x23x17 11.1 19 23 17 12000 18600 12000 20000
K20x24x10 20 6.5 20 24 10 8700 12100 11400 19000
K20x24x12 8 20 24 12 9600 13800 11400 19000
K20x24x13 8.9 20 24 13 9600 13800 11400 19000
K20x24x17 11.2 20 24 17 12400 20000 11400 19000
K20x26x12 13.2 20 26 12 13100 15700 11400 19000
K20x26x16 17.5 20 26 16 18000 25000 11100 18500
K20x26x17 18.2 20 26 17 18700 25500 11400 19000
K20x26x20 22 20 26 20 20600 28500 11400 19000
K20x28x20 26.8 20 28 20 23400 28000 10800 18000
K20x28x25 36.2 20 28 25 30000 28500 10800 18000
K20x30x30 56 20 30 30 35000 41000 10800 18000
K21x25x13 21 9 21 25 13 9600 14500 11400 19000
K21x25x17 12 21 25 17 12800 21000 11400 19000
K22x26x10 22 7.1 22 26 10 8700 12900 10800 18000
K22x26x13 9.4 22 26 13 10000 15400 10800 18000
K22x26x17 12.1 22 26 17 13100 22100 10800 18000
K22x27x13 10.8 22 27 13 14000 23000 10800 18000
K22x28x17 19.7 22 28 17 19000 26500 10800 18000
K22x28x23 26 22 28 23 20000 27000 11400 19000
K22x29x16 22.2 22 29 16 19500 25000 10200 17000
K22x30x15TN 14.4 22 30 15 19600 22900 10200 17000
K22x30x20 28 22 30 20 21000 23500 11340 18900
K22x32x24 43.4 22 32 24 33500 39500 9600 16000
K23x35x16TN 23 30 23 35 16 24000 23400 9000 15000
K24x28x10 24 8.1 24 28 10 9400 14300 10200 17000
K24x28x13 10.1 24 28 13 10500 17000 10200 17000
K24x28x17 13.2 24 28 17 14000 24500 10200 17000
K24x29x13 13.5 24 29 31 13100 19100 9600 16000
K24x30x17 21.5 24 30 17 19000 27000 9600 16000
K24x30x31 39.1 24 30 31 27000 43000 9600 16000
K25x29x10 25 8.3 25 29 10 9700 14900 9600 16000
K25x29x13 10.4 25 29 13 10800 17900 9600 16000
K25x29x17 13.7 25 29 17 14500 25500 9600 16000
K25x30x13 12.9 25 30 13 14100 21300 9600 16000
K25x30x20 20.5 25 30 20 21100 28000 9600 16000
K25x30x25 21 25 30 25 21700 40400 9600 16000
K25x30x26 21.6 25 30 26 20100 26500 9000 15000
K25x31x17 21.8 25 31 17 19000 28000 9000 15000
K25x31x21 26.2 25 31 21 24100 37500 9600 16000
K25x32x16 24.5 25 32 16 20500 27500 9000 15000
K25x33x20 32 25 33 20 28000 37500 9000 15000
K25x33x24 38.7 25 33 24 33900 46500 9000 15000
K25x34x18 32 25 34 18 48000 67000 9000 15000
K25x35x30 65.5 25 35 30 46500 61500 8400 14000
K25x30x26ZW 27 25 30 26 21000 35000 8400 14000
K26x30x10 26 9 26 30 10 9500 15500 9600 16000
K26x30x13 11.4 26 30 13 11100 18700 9600 16000
K26x30x17 15 26 30 17 14700 27000 9600 16000
K26x31x13 9.9 26 31 13 12400 18400 9000 15000
K26x30x22 12.3 26 30 22 15200 28000 9600 16000
K27x32x17 27 29 27 32 27 16000 34000 10200 17000
K28x32x16.5 28 16 28 32 16.5 15000 32400 8400 14000
K28x32x17 18.2 28 32 17 15000 32400 8400 14000
K28x33x13 15.2 28 33 13 14800 23600 8400 14000
K28x33x17 19.5 28 33 17 19100 33000 8400 14000
K28x33x27TN 19 28 33 27 22800 40500 8400 14000
K28x34x17 24.2 28 34 17 21300 35000 8400 14000
K28x35x16 26 28 35 16 21000 29000 8400 14000
K28x35x18 31 28 35 18 23500 33500 8400 14000
K28x35x20 35 28 35 20 24000 34000 8400 14000
K28x35x27 47 28 35 27 34500 54500 8400 14000
K28x36x16 40 28 36 16 34000 47000 6600 11000
K28x40x18 50 28 40 18 33000 36500 7200 12000
K28x40x25 71 28 40 25 45000 54500 7200 12000
K30x33x10 30   30 33 10
K30x34x13 14.6 30 34 13 11800 21200 7800 13000
K30x35x13 16.3 30 35 13 15100 25000 7800 13000
K30x35x17 21.3 30 35 17 19100 33500 7800 13000
K30x35x26   30 35 26
K30x35x27 33.3 30 35 27 30000 58500 7800 13000
K30x37x16 26.4 30 37 16 22500 33000 7800 13000
K30x38x25 43 30 38 25 16000 39000 7800 13000
K30x39x21   30 39 21
K30x40x18 44 30 40 18 31500 39500 7200 12000
K30x40x27 60 30 40 27
K30x40x30 78 30 40 30 48500 68500 7800 13000
K30x35x26 32 30 35 26 23500 43500 7200 12000
K30x42x44.1   30 42 44.1
K32x37x13 32 18.3 32 37 13 15000 25000 7200 12000
K32x37x17 22.4 32 37 17 19400 35000 7200 12000
K32x37x27 36.7 32 37 27 29500 59500 7200 12000
K32x37x28TN 22.3 32 37 28 23100 43000 7200 12000
K32x38x16 25 32 38 16 21000 34000 7200 12000
K32x38x20 31 32 38 20 26000 44500 7200 12000
K32x38x26TN 25.2 32 38 26 27000 46500 7200 12000
K32x39x16 36.7 32 39 16 23500 35000 7200 12000
K32x39x18 37.2 32 39 18 26000 40500 7200 12000
K32x40x20 48 32 40 20 37000 40500 7200 12000
K32x40x36 73 32 40 36 53500 91500 7200 12000
K32x46x32 119 32 46 32 65500 82500 6600 11000
K32x40x42TN 771 32 40 42 49500 83500 7200 12000
K35x40x13 35 188 35 40 13 15800 27500 6600 11000
K35x40x17 25.3 35 40 17 20300 38000 6600 11000
K35x40x25 31 35 40 25 29000 59500 6600 11000
K35x40x27TN 23.4 35 40 27 24500 48000 6600 11000
K35x40x27 28 35 40 27 27800 62100 6600 11000
K35x40x30 43 35 40 30 25000 49500 6600 11000
K35x42x16 34 35 42 16 23900 37000 6600 11000
K35x42x18 39.2 35 42 18 27000 42500 6600 11000
K35x42x30 62.4 35 42 30 38500 67500 6600 11000
K35x43x18 38 35 43 18 28000 41500 6600 11000
K35x45x20 55.5 35 45 20 36500 49500 6000 10000
K35x45x30 80 35 45 30 52500 78500 6000 10000
K35x45x49 120 35 45 49 81500 13400 6000 10000
K35x40x30ZW 48 35 40 30 31500 65500 6600 11000
K35x42x20ZW 41 35 42 20 29500 48500 6600 11000
K36x41x30 36 52 36 41 30 23000 43000 6600 11000
K36x42x16 50 36 42 16 24000 42000 6600 11000
K37x42x17 37 25.8 37 42 17 21900 42500 6000 10000
K37x42x27 40.7 37 42 27 31500 67500 6000 10000
K37x45x26 60.5 37 45 26 20000 13500 6000 10000
K38x43x27 38 43.2 38 43 27 31000 67500 6000 10000
K38x46x20 46 38 46 20 35000 56500 6000 10000
K39x44x24 39 38 39 44 24 28000 58500 6000 10000
K39x44x26ZW 29.5 39 44 26 27000 55500 6000 10000
K40x44x13 40 20 40 45 13 13500 28000 6000 10000
K40x45x13 21.5 40 45 13 17100 32000 6000 10000
K40x45x17 27.4 40 45 17 20900 41000 6000 10000
K40x45x21 36.5 40 45 21 24400 49500 6000 10000
K40x45x27 46 40 45 27 32500 72500 6000 10000
K40x46x17 30 40 46 17 24500 44500 5400 9000
K40x47x18 45.2 40 47 18 29000 49500 5400 9000
K40x47x20 42 40 47 20 32000 56500 5400 9000
K40x48x20 57.7 40 48 20 35500 58500 5400 9000
K40x45x30ZW 48 40 45 30 26000 53500 5400 9000
K42x47x13 42 22.5 42 47 13 17300 33000 5400 9000
K42x47x17 31.1 42 47 17 21100 42500 5400 9000
K42x47x25TN 25.4 42 47 25 27000 57500 5400 9000
K42x47x27 46.6 42 47 27 33000 74500 5400 9000
K42x48x35 60 42 48 35 35000 76000 5400 9000
K42x50x18 53 42 50 18 31000 49500 5400 9000
K42x50x20 54 42 50 20 34500 56500 5400 9000
K42x47x30ZW 54 42 47 30 31000 75500 5400 9000
K43x48x17 43 29.3 43 48 17 21000 42500 5400 9000
K43x48x27 45.7 43 48 27 33000 74500 5400 9000
K43x50x18 48.5 43 50 18 30500 53500 4800 8000
K45x49x19 45 27 45 49 19 17500 40000 4800 8000
K45x50x17 25.5 45 50 17 22000 45000 4800 8000
K45x50x27 50 45 50 27 34000 79500 4800 8000
K45x50x32TN 45 45 50 32 38000 90500 4800 8000
K45x52x18 51 45 52 18 31000 56500 4800 8000
K45x52x21TN 32.9 45 52 21 39500 57500 4800 8000
K45x53x20 62.2 45 53 20 38500 66500 4800 8000
K45x53x21 65 45 53 21 38000 66500 4800 8000
K45x53x22 68.4 45 53 22 42000 66500 4800 8000
K45x53x28 78 45 53 28 51500 97500 4800 8000
K45x59x18TN 60.5 45 59 18 43500 53500 4200 7000
K45x59x32 145.5 45 59 32 72500 101500 4200 7000
K45x59x36 195 45 59 36 75500 108500 4200 7000
K45x51x36ZW 85 45 51 36 44500 98500 4200 7000
K47x52x17 47 32 47 52 17 22800 48500 4800 8000
K47x52x27 50.7 47 52 27 34500 82500 4800 8000
K47x53x25 53 47 53 25 38000 81500 4800 8000
K47x55x28 62.4 47 55 28 52500 99500 4500 7500
K48x54x19 48 44 48 54 19 30000 60500 4500 7500
K48x54x25 55 48 54 25 31000 91000 4500 7500
K50x55x13.5 50 31 50 55 13.5 17500 36000 4500 7500
K50x55x17 35 50 55 17 21400 46500 4500 7500
K50x55x20 39.4 50 55 20 26000 59500 4500 7500
K50x55x30 59.4 50 55 30 38500 96500 4500 7500
K50x57x18 53.4 50 57 18 33000 62500 4200 7000
K50x58x20 64.9 50 58 20 35000 61500 4200 7000
K50x58x25 81 50 58 25 43500 80500 4200 7000
K52x57x12 52 24 52 57 12 17500 36000 4200 7000
K55x60x20 55 43.4 55 60 20 28000 65500 3900 6500
K55x60x27 60.5 55 60 27 37500 96500 3900 6500
K55x60x30 68.6 55 60 30 40500 10300 3900 6500
K55x61x20 56 55 61 20 41000 11000 3900 6500
K55x62x18 58.4 55 62 18 35000 69500 3900 6500
K55x63x15 53 55 63 15 24500 40500 3900 6500
K55x63x20 73.3 55 63 20 39500 73500 3900 6500
K55x63x25 88 55 63 25 49500 99500 3900 6500
K55x63x32 117 55 63 32 61500 129500 3900 6500
K55x60x40ZW 96.5 55 60 40 48000 132000 3900 6500
K56x61x20 56 45 56 61 20 27000 64500 3900 6500
K58x63x17 58 42 58 63 17 21500 63500 3600 6000
K58x64x19 53 58 64 18 24500 77500 3600 6000
K58x65x18 52 58 65 19 34500 69500 3600 6000
K58x65x38ZW 106 58 65 18 48500 106500 3600 6000
K60x65x20 60 50.5 60 65 20 29000 71500 3600 6000
K60x65x30 71.2 60 65 30 42000 115500 3600 6000
K60x68x20 79 60 68 20 43000 84500 3300 5500
K60x68x23 94 60 68 23 49000 100500 3300 5500
K60x68x25 97 60 68 25 52500 110500 3300 5500
K60x68x27 98 60 68 27 59000 120500 3600 6000
K60x75x42 240 60 75 42 11300 19200 3300 5500
K60x66x33ZW 104 60 66 33 45500 111500 3600 6000
K60x66x40ZW 116 60 66 40 57500 150500 3300 5500
K60x68x30ZW 136 60 68 30 44000 87500 3300 5500
K60x68x34ZW 140 60 68 34 47500 95500 3300 5500
K62x70x40ZW 62 147.5 62 70 40 6550 145500 3300 5500
K63x70x21 63 75 63 70 21 45000 100500 3300 5500
K64x70x16 64 53 64 70 16 27500 59500 3300 5500
K65x70x20 65 49 65 70 20 30000 76500 3300 5500
K65x70x30 83 65 70 30 43500 93500 3300 5500
K65x73x23 100 65 73 23 45500 93500 3000 5000
K65x73x30 126 65 73 30 56500 122500 3000 5000
K68x74x20 68 65 68 74 20 35000 83500 3000 5000
K68x74x30 97 68 74 30 46000 117500 3000 5000
K68x74x35ZW 116 68 74 35 48000 124500 3000 5000
K68x75x20 120 68 75 32 53500 127500 2700 4500
K70x76x20 70 70 70 76 20 35500 85500 2700 4500
K70x76x30 100 70 76 30 51500 138500 2700 4500
K70x78x25 115 70 78 25 51500 111500 2700 4500
K70x78x30 136 70 78 30 59500 134500 2700 4500
K70x80x30 150 70 80 30 72500 147500 2700 4500
K70x78x46ZW 230 70 78 46 77500 18800 2700 4500
K72x80x20 72 94 72 80 20 41000 84500 2700 4500
K73x79x20 73 69 73 79 20 36500 99500 2700 4500
K75x81x20 75 72 75 81 20 37000 93500 2700 4500
K75x81x30 106 75 83 30 51500 142000 2400 4000
K75x83x23 113 75 83 23 49500 108000 2400 4000
K75x83x30 147 75 83 30 91500 142000 2400 4000
K75x83x35ZW 165 75 83 35 62500 146500 2400 4000
K75x83x40ZW 190 75 86 40 72500 176500 2400 4000
K80x86x20 80 76 80 86 20 38000 97500 2400 4000
K80x86x30 114 80 86 30 55500 158500 2400 4000
K80x88x30 141 80 88 30 71500 178500 2400 4000
K80x88x40ZW 204 80 88 40 75500 191500 2400 4000
K80x88x46ZW 235 80 88 46 87500 23000 2400 4000
K85x92x20 85 96 85 92 20 44000 107500 2100 3500
K90x97x20 90 103 90 97 20 44500 112500 1800 3000
K90x98x27 150 90 98 27 60500 149500 1800 3000
K90x98x30 172 90 98 30 67500 171500 1800 3000
K95x102x20 95 110 95 102 20 45500 122500 1740 2900
K95x103x30ZW 177 95 103 30 68500 179500 1740 2900
K95x103x40ZW 250 95 103 40 82500 227500 1740 2900
K100x107x21 100 120 100 107 21 47500 126500 1620 2700
K100x108x27 176 100 108 27 56500 142500 1620 2700
K100x108x30 190 100 108 30 70500 187500 1620 2700
K105x112x21 105 123 105 112 21 47000 126500 1500 2500
K105x113x30 198 105 113 30 71500 196500 1500 2500
K110x117x24 110 146 110 117 24 55500 157500 1380 2300
K110x118x30 217 110 118 30 77500 218500 1380 2300

Company Profile

Ningbo Sanya Bearing Co., Ltd. is a professional China Radial Stainless Steel Needle Roller Bearings and Cage Assemblies Manufacturers and Radial Stainless Steel Needle Roller Bearings and Cage Assemblies Factory.We established in 1994 stands right at the prime location of the Yangtze River Delta. Specialized in the production of high-quality deep groove ball bearings and insert bearings. It has emerged as a modern company integrating product development, design, manufacturing, sales and service. It can produce bearings with an inner diameter of 3mm to 100mm and customize various non-standard Custom Series 6000 Two Contact Seals Deep Groove Ball Bearing with highly-automated equipment, stable quality, and complete testing methods ensuring the quality of its products. With the vigorous development of the foreign trade department, our business in bearing production and sales in 2018 far exceeded 20 million US dollars, and the products were sold in more than 50 countries and regions.

Ningbo Sanya Bearing Co., Ltd.
Ningbo Sanya Bearing Co., Ltd.

The company has established a modernized enterprise management system, pooling talents in various fields to make the company more humane, informatized and international with the ISO9001 quality management system being introduced to the production process to enhance its competitiveness. In 2017, the ISO/TS16949 quality management system was also introduced to seek further development in richer application field.

Taking "integrity; service; cooperation; win-win " as the core values, and "customer, order primacy" as its working philosophy, adhering to the vision of becoming China's bearing supplier, while satisfying the customers and helping employees achieve their dreams, it is constantly heading towards the goal of "get the world move with Chinese Bearings ".

News
Message Feedback
