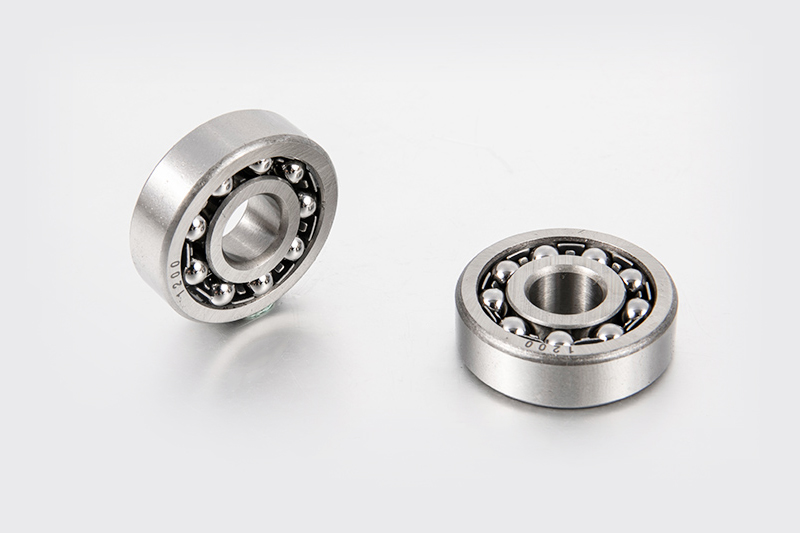

Self-aligning Ball Bearings (reduced friction, vibration, and noise)

Self-aligning Ball Bearings (reduced friction, vibration, and noise)

SYSTEM DESCRIPTION:

Self-aligning Ball Bearings (reduced friction, vibration, and noise)

PRODUCT DETAILS:

Self-aligning ball bearings have two structures: cylindrical bore and tapered bore. The cage is made of steel plate, synthetic resin, etc. Its characteristic is that the outer ring raceway is spherical, with self-alignment, which can compensate the errors caused by misalignment and shaft deflection, but the relative inclination of the inner and outer rings should not exceed 3 degrees.

OVERALL DIMENSION Load rating(KN) Speed rating/r.min-1 Weight(kg)
Cylindrical Bore Tapered Bore d D B r (min) Cr Cor Grease Oil  Cylindrical Bore Tapered Bore
135 5 19 6 0.3 2.5 0.55 32000 38000 0.009
126 6 19 6 0.3 2.5 0.55 32000 38000 0.009
127 7 22 7 0.3 2.7 0.65 30000 36000 0.014
108 8 22 7 0.3 2.7 0.65 30000 36000 0.014
129 9 26 7 0.6 3.9 0.95 26000 32000 0.022
1200 10 30 9 0.6 5.48 1.2 24000 28000 0.034
2200 10 30 14 0.6 7.12 1.58 24000 28000 0.047
1300 10 35 11 0.6 7.22 1.62 20000 24000 0.058
2300 10 35 17 0.6 11 2.45 18000 22000 0.085
1201 12 32 10 0.6 5.55 1.25 22000 26000 0.04
2201 12 32 14 0.6 8.8 1.8 22000 26000 0.053
1301 12 37 12 1 9.42 2.12 18000 22000 0.067
2301 12 37 17 1 12.5 2.72 17000 22000 0.095
1202 15 35 11 0.6 7.48 1.75 18000 22000 0.049
2202 15 35 14 0.6 7.65 1.8 18000 22000 0.06
1303 15 42 13 1 9.5 2.28 16000 20000 0.094
2302 15 42 17 1 12 2.88 14000 18000 0.114
1203 17 40 12 0.6 7.9 2.02 16000 20000 0.073
2203 17 40 16 0.6 9 2.45 16000 20000 0.088
1303 17 47 14 1 12.5 3.18 14000 17000 0.13
2303 17 47 19 1 14.5 3.58 13000 16000 0.158
1204 1204K 20 47 14 1 9.95 2.65 14000 17000 0.12 0.118
2204 2204K 20 47 18 1 12.5 3.28 14000 17000 0.14 0.136
1304 1304K 20 52 15 1.1 12.5 3.38 12000 15000 0.163 0.161
2304 2304K 20 52 21 1.1 17.8 4.75 11000 14000 0.209 0.205
1205 1205K 25 52 15 1 12 3.3 12000 14000 0.141 0.138
2205 2205K 25 52 18 1 12.5 3.4 12000 14000 0.163 0.158
1305 1305K 25 62 17 1.1 17.8 5.05 10000 13000 0.257 0.252
2305 2305K 25 62 24 1.1 24.5 6.48 9500 12000 0.335 0.327
1206 1206K 30 62 16 1 15.8 4.7 10000 12000 0.22 0.216
2206 2206K 30 62 20 1 15.2 4.6 10000 12000 0.26 0.254
1306 1306K 30 72 19 1.1 21.5 6.28 8500 11000 0.387 0.381
2306 2306K 30 72 27 1.1 31.5 8.68 8000 10000 0.5 0.489
1207 1207K 35 72 17 1.1 15.8 5.08 8500 10000 0.323 0.317
2207 2207K 35 72 23 1.1 21.8 6.65 8500 10000 0.403 0.396
1307 1307K 35 80 21 1.5 25 7.95 7500 9500 0.51 0.381
2307 2307K 35 80 31 1.5 39.2 11 7100 9000 0.675 0.489
1208 1208K 40 80 18 1.1 19 6.95 8500 10000 0.417 0.411
2208 2208K 40 80 23 1.1 31.9 10 7500 9000 0.505 0.494
1308 1308K 40 90 23 1.5 33.8 11.2 6700 8000 0.715 0.704
2308 2308K 40 90 33 1.5 54 16 6300 7500 0.925 0.903
1209 1209K 45 85 19 1.1 22.9 7.8 7500 9000 0.465 0.459
2209 2209K 45 85 23 1.1 32.5 10.6 7000 8500 0.545 0.533
1309 1309K 45 100 25 1.5 39 13.4 6300 7500 0.957 0.942
2309 2309K 45 100 36 1.5 63.7 19.3 5600 6700 1.23 1.2
1210 1210K 50 90 20 1.1 26.5 9.15 7000 8500 0.525 0.515
2210 2210K 50 90 23 1.1 33.8 11.2 6300 7500 0.59 0.577
1310 1310K 50 110 27 2 43.6 14 5600 6700 1.21 1.19
2310 2310K 50 110 40 2 43.6 14 5300 6300 1.64 1.6
1211 1211K 55 100 21 1.5 26.8 10 5800 7100 0.705 0.693
2211 2211K 55 100 25 1.5 26.8 10 5800 7100 0.81 0.792
1311 1311K 55 120 29 2 51.3 17.9 5000 6200 1.58 1.56
2311 2311K 55 120 43 2 75.3 24 4600 6400 2.1 2.05
1212 1212K 60 110 22 1.5 30.2 11.5 5200 6400 0.9 0.885
2212 2212K 60 110 28 1.5 34.1 12.6 5300 6500 1.09 1.07
1312 1312K 60 130 31 2.1 57.2 20.8 4500 5500 1.96 1.93
2312 2312K 60 130 46 2.1 87.2 28.3 4200 5800 2.6 2.53
1213 1213K 65 120 23 1.5 31 12.5 4800 5800 1.15 1.13
2213 2213K 65 120 31 1.5 43.5 16.4 4900 5900 1.46 1.43
1313 1313K 65 140 33 2.1 61.7 22.9 4300 5200 2.45 2.41
2313 2313K 65 140 48 2.1 95.8 32.5 3800 5300 3.23 3.15
1214   70 125 24 1.5 34.6 13.8 4600 5700 1.26
2214   70 125 31 1.5 43.9 17.1 4600 5600 1.52
1314   150 35 35 2.1 74 27.7 4000 4900 2.99
2314   150 51 51 2.1 89.6 31.7 3600 4900 4.23
1215 1215K 75 130 25 1.5 38.8 15.7 4300 5300 1.36 1.34
2215 2215K 75 130 31 1.5 44.2 17.8 4300 5300 1.62 1.58
1315 1315K 75 160 37 2.1 78.9 29.9 4000 4900 3.56 3.51
2315 2315K 75 160 55 2.1 103 36.8 3400 4600 5.13 5.01
1216 1216K 80 140 26 2 39.8 17 4000 4900 1.67 1.64
2216 2216K 80 140 33 2 49 19.9 4100 5000 2.01 1.97
1316 1316K 80 170 39 2.1 88.1 33.1 3500 4300 4.18 4.12
2316 2316K 80 170 58 2.1 129 45.7 3100 4300 6.1 5.96
