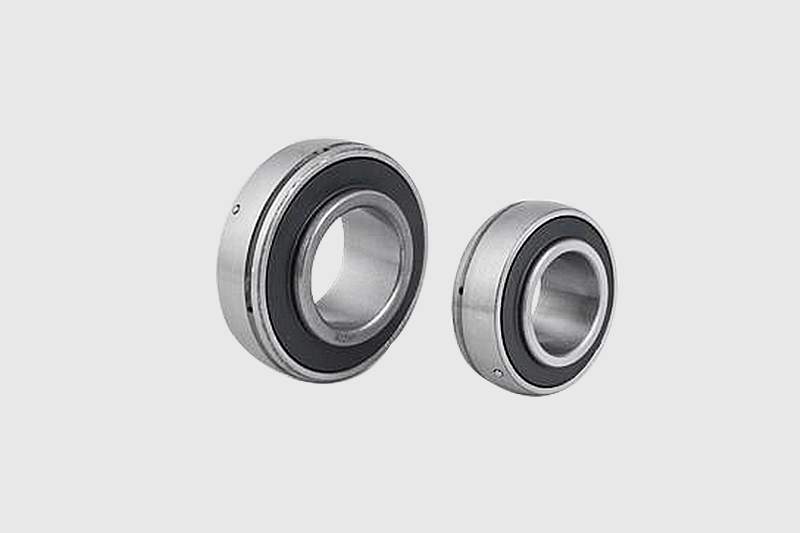

UK Medium Duty  Insert Bearing With Lock Collar Series

UK Medium Duty Insert Bearing With Lock Collar Series

SYSTEM DESCRIPTION:

UK Medium Duty Insert Bearing With Lock Collar Series

PRODUCT DETAILS:

Bearing No.   d   D                     Dimension  mm   h Dynamic load
ratings
Statie load
ratings
Mass            (kg)
in.
B C
min max min max Cr (KN) Cor (KN)
UK 205 25 52 15 27 15 17 3.9 10.8 7.88 0.15
0.9843 2.0472 0.5905 1.063 0.5905 0.6693 0.1535
UK 206 30 62 16 30 16 19 5 15 11.2 0.25
1.1811 2.4409 0.63 1.1811 0.63 0.748 0.1969
UK 207 35 72 17 34 17 20 5.8 19.8 15.2 0.37
1.378 2.8346 0.6693 1.3386 0.6693 0.7874 0.2283
UK 208 40 80 18 36 18 22 6.3 22.8 18.2 0.48
1.5748 3.1496 0.7087 1.4173 0.7087 0.8661 0.248
UK 209 45 85 19 39 19 22 6.4 24.5 20.8 0.53
1.7717 3.3465 0.748 1.5354 0.748 0.8661 0.252
UK 210 50 90 20 43 20 24 6.5 27 23.2 0.59
1.9685 3.5433 0.7874 1.6929 0.7874 0.9449 0.2559
UK 211 55 100 21 47 21 25 7 33.5 29.2 0.77
2.1654 3.937 0.8268 1.8504 0.8268 0.9843 0.2756
UK 212 60 110 22 49 22 27 7.6 36.8 32.8 1.03
2.3622 4.3307 0.8661 1.9291 0.8661 1.063 0.2992
UK 213 65 120 23 51 23 32 8.5 44 40 1.36
2.5591 4.7244 0.9055 2.0079 0.9055 1.2598 0.3346
UK 215 75 130 25 58 25 34 9.2 50.8 49.5 1.67
2.9528 5.1181 0.9843 2.2835 0.9843 1.3386 0.3622
UK 216 80 140 26 61 26 35 9.5 55 54.2 1.96
3.1496 5.5118 1.0236 2.4016 1.023 1.377 0.374
UK 217 85 150 28 64 28 36 10.2 64 63.8 2.42
3.3465 5.9055 1.1024 2.5197 1.1024 1.4173 0.4016
UK 218 90 160 30 68 30 38 11.2 73.8 71.5 3
3.5433 6.2992 1.1811 2.6772 1.1811 1.4961 0.4409



Tolerance Class

Standard

Tolerance class

GB/T307.1

PO

P6

P5

P4

IS0492

C LASSO

CLASS6

CLASS5

CLASS4

AFBMA STD.20

ABEC1

ABEC3

ABEC5

ABEC7

Bearing Material

Chrome Steel: Chemical Composition of Chrome Steel

Steel No

Chemical Composition%

C

Si

Mn

P

S

Cr

Gcr15

0.95-1.05

0.15-0.35

0.20-0.40

≤0.027

≤0.02

1.30-1.65

The Interchange of Chrome Steel No.

Country

China

ISO

U.S.A

Germany

Japan

Sweden

Bearings
Steel No.

Gcr15

638/XVII 1

(AISI)52100

(DIN)100Cr6

(Jis)SVJ2

SKF3

Packing

Tube packing, single box packing or other industrial packing are all available.Special requirements should be mentioned in the order

Our own NSJ package is as below







Company Profile

Ningbo Sanya Bearing Co., Ltd. is a professional China UK Medium Duty Insert Bearing With Lock Collar Series Manufacturers and UK Medium Duty Insert Bearing With Lock Collar Series Factory.We established in 1994 stands right at the prime location of the Yangtze River Delta. Specialized in the production of high-quality deep groove ball bearings and insert bearings. It has emerged as a modern company integrating product development, design, manufacturing, sales and service. It can produce bearings with an inner diameter of 3mm to 100mm and customize various non-standard Custom Series 6000 Two Contact Seals Deep Groove Ball Bearing with highly-automated equipment, stable quality, and complete testing methods ensuring the quality of its products. With the vigorous development of the foreign trade department, our business in bearing production and sales in 2018 far exceeded 20 million US dollars, and the products were sold in more than 50 countries and regions.

Ningbo Sanya Bearing Co., Ltd.
Ningbo Sanya Bearing Co., Ltd.

The company has established a modernized enterprise management system, pooling talents in various fields to make the company more humane, informatized and international with the ISO9001 quality management system being introduced to the production process to enhance its competitiveness. In 2017, the ISO/TS16949 quality management system was also introduced to seek further development in richer application field.

Taking "integrity; service; cooperation; win-win " as the core values, and "customer, order primacy" as its working philosophy, adhering to the vision of becoming China's bearing supplier, while satisfying the customers and helping employees achieve their dreams, it is constantly heading towards the goal of "get the world move with Chinese Bearings ".
