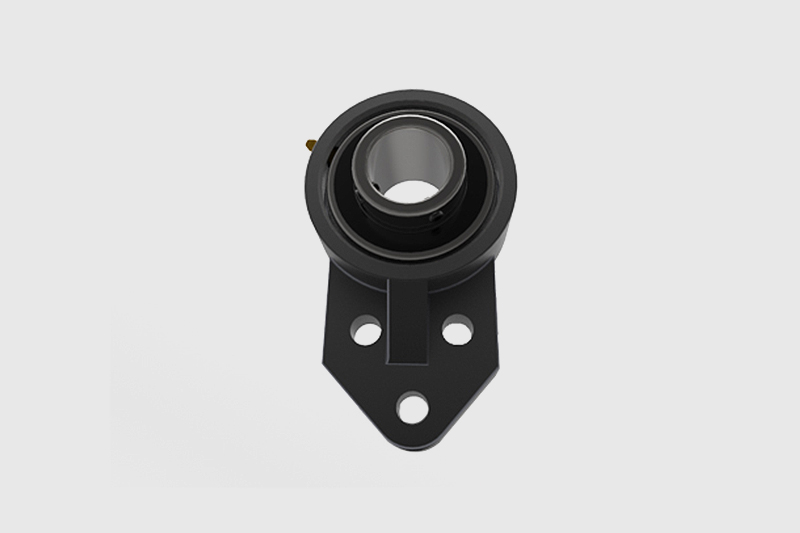

FLANGE BRACKET Pillow Block Units:UCFB series

FLANGE BRACKET Pillow Block Units:UCFB series

SYSTEM DESCRIPTION:

FLANGE BRACKET Pillow Block Units:UCFB series

PRODUCT DETAILS:

Bearing No.    Shaft                   Dia                     Dimensions (mm) Bolt Size Weight (kg)
d H0 L H1 P H j J A A1 A2 N E S
(in.) (mm)
UCFB 201   12 104 55 50 49 40 27 30 23.5 10 14 10 29.9 11.5 M8 0.42
  201-8 1/2
  202   15
  202-10 5/8
  203   17
  203-11 11/16
UCFB 204-12 3/4   109 60 52 52 42 27 32 25.5 11 15 10 33.3 12.7 M8 0.62
  204   20
UCFB 205-14 7/8   116 68 52 56 45 27 34 27 13 16 10 35.8 14.3 M8 0.69
  205-15 15/16
  205   25
  205-16 1
UCFB 206-18 1-1/8   132 80 55 65 50 29 40 31 13 18 10 40.2 15.9 M8 0.93
  206   30
  206-19 1-3/16
  206-20 1-1/4
UCFB 207-20 1-1/4   144 90 62 70 55 32 46 33 14 19 10 44.4 17.5 M8 1.3
  207-21 1-5/16
  207-22 1-3/8
  207   35
  207-23 1-7/16
UCFB 208-24 1-1/2   164 100 72 78 60 41 50 35 17 21 12 51.2 19 M10 1.8
  208-25 1-9/16
  208   40
UCFB 209-26 1-5/8   175 108 76 80 65 43 54 38 16 22 12 52.2 19 M10 2
  209-27 1-11/16
  209-28 1-3/4
  209   45
UCFB 210-30 1-7/8   184 114 82 86 68 46 58 39 16 22 12 54.6 19 M10 2.3
  210-31 1-15/16
  210   50

Housing Material:

HT200 or QT450-10, QT450-10 is only for PFTD2 series and FCT2 series.



Bearing Material

Chrome Steel: Chemical Composition of Chrome Steel

Steel No

Chemical Composition%

C

Si

Mn

P

S

Cr

Gcr15

0.95-1.05

0.15-0.35

0.20-0.40

≤0.027

≤0.02

1.30-1.65

The Interchange of Chrome Steel No.

Country

China

ISO

U.S.A

Germany

Japan

Sweden

Bearings
Steel No.

Gcr15

638/XVII 1

(AISI)52100

(DIN)100Cr6

(Jis)SVJ2

SKF3

● Material is suitable for applications.

● Grease fitting for relubrication is included – enabling maximized service life under severe operating conditions.

● Housings can be painted with different color water-based alkyd/acryl paint

● Unpainted surfaces are protected by a solventless rust inhibitor.

●Housings can be ordered as separate products for combination with any insert ball bearing.



Packing

Tube packing, single box packing or other industrial packing are all available.Special requirements should be mentioned in the order

Our own NSJ package is as below
