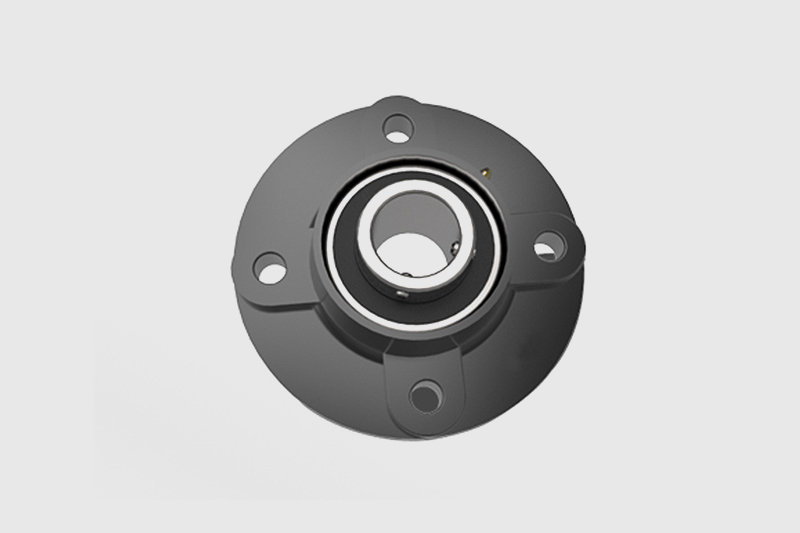

ROUND FLANGED CARTRIDGE Pillow Block Units:UCFC series

ROUND FLANGED CARTRIDGE Pillow Block Units:UCFC series

SYSTEM DESCRIPTION:

ROUND FLANGED CARTRIDGE Pillow Block Units:UCFC series

PRODUCT DETAILS:

Bearing No. Shaft Dia                     Dimensions (mm) Bolt Size Weight (kg)
d L P A2 A1 A j K N J f S E
(in.) (mm)
UCFC 201   12 90 70 10 19 23 4 5 10 49.5 55 11.5 25.9 M8 0.6
  201-8 1/2
  202   15
  202-10 5/8
  203   17
  203-11 11/16
UCFC 204-12 3/4   100 78 10 20.5 25.5 5 6 11.5 55.1 62 12.7 28.3 M10 0.76
  204   20
UCFC 205-14 7/8   115 90 10 21 27 6 7 12 63.6 70 14.3 29.8 M10 0.96
  205-15 15/16
  205   25
  205-16 1
UCFC 206-18 1-1/8   125 100 10 23 31 8 8 12 70.7 80 15.9 32.2 M10 1.37
  206   30
  206-19 1-3/16
  206-20 1-1/4
UCFC 207-20 1-1/4   135 110 11 26 34 8 9 14 77.8 90 17.5 36.4 M12 1.7
  207-21 1-5/16
  207-22 1-3/8
  207   35
  207-23 1-7/16
UCFC 208-24 1-1/2   145 120 11 26 36 10 9 14 84.8 100 19 41.2 M12 2
  208-25 1-9/16
  208   40
UCFC 209-26 1-5/8   160 132 10 26 38 12 10 16 93.3 105 19 40.2 M14 2.7
  209-27 1-11/16
  209-28 1-3/4
  209   45
UCFC 210-30 1-7/8   165 138 10 28 40 12 14 16 97.6 110 19 42.6 M14 2.9
  210-31 1-15/16
  210   50
UCFC 211-32 2   185 150 13 30 472 12 13 19 106.1 125 22.2 46.4 M16 4.2
  211-34 2-1/8
  211   55
  211-35 2-3/16
UCFC 212-36 2-1/4   195 160 17 36 48 12 15 19 113.1 135 25.4 56.7 M16 4.94
  212   60
  212-38 2-3/8
  212-39 2-7/16
UCFC 213-40 2-1/2   205 170 16 35 49 14 15 19 120.2 145 25.4 55.7 M16 5.7
  213   65
UCFC 214-44 2-3/4   215 177 17 38 52 14 16 19 125.1 150 30.2 61.4 M16 6.8
  214   70
UCFC 215   75 220 184 18 39 55 16 17 19 130.1 160 33.3 62.5 M16 7.2
  215-48 3
UCFC 216   80 240 200 18 42 58 16 18 23 141.4 170 33.3 67.3 M20 8.7
UCFC 217-52 3-1/4   250 208 18 45 63 18 20 23 147.1 180 34.1 69.6 M20 10.3
  217   85
UCFC 218-56 3-1/2   265 220 22 50 68 18 20 23 155.5 190 39.7 78.3 M20 13.5
  218   90

Housing Material:

HT200 or QT450-10, QT450-10 is only for PFTD2 series and FCT2 series.



Bearing Material

Chrome Steel: Chemical Composition of Chrome Steel

Steel No

Chemical Composition%

C

Si

Mn

P

S

Cr

Gcr15

0.95-1.05

0.15-0.35

0.20-0.40

≤0.027

≤0.02

1.30-1.65

The Interchange of Chrome Steel No.

Country

China

ISO

U.S.A

Germany

Japan

Sweden

Bearings
Steel No.

Gcr15

638/XVII 1

(AISI)52100

(DIN)100Cr6

(Jis)SVJ2

SKF3

● Material is suitable for applications.

● Grease fitting for relubrication is included – enabling maximized service life under severe operating conditions.

● Housings can be painted with different color water-based alkyd/acryl paint

● Unpainted surfaces are protected by a solventless rust inhibitor.

●Housings can be ordered as separate products for combination with any insert ball bearing.



Packing

Tube packing, single box packing or other industrial packing are all available.Special requirements should be mentioned in the order

Our own NSJ package is as below
