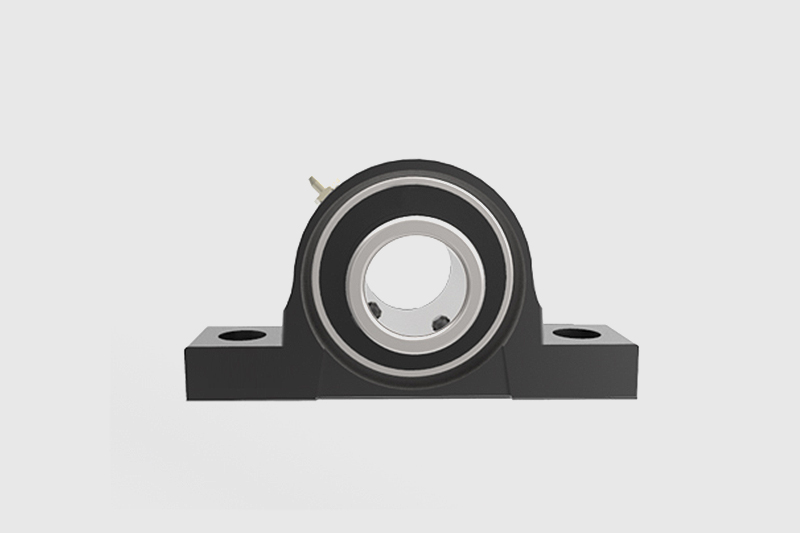

Pillow Block Units: UCP series

Pillow Block Units: UCP series

SYSTEM DESCRIPTION:

Pillow Block Units: UCP series

PRODUCT DETAILS:

Bearing No. Shaft Dia                     Dimensions (mm) Bolt Size Weight (kg)
d H L J A N N1 H1 H0 S B
(in.) (mm)
UCP 201   12 30.2 125 96 32 12 16 13 57 11.5 27.4 M10 0.6
201-8 1/2
202   15
202-10 5/8
203   17
203-11 11/16
UCP 204-12 3/4   33.3 127 96 38 13 19 14 65 12.7 31 M10 0.65
204   20
UCP 205-14 7/8   36.5 140 105 38 13 19 15 71 14.3 34.1 M10 0.72
205-15 15/16
205   25
205-16 1
UCP 206-18 1-1/8   42.9 160 121 48 14 23 17 83 15.9 38.1 M12 1.15
206   30
206-19 1-3/16
206-20 1-1/4
UCP 207-20 1-1/4   47.6 167 126 48 14 23 18 93 17.5 42.9 M12 1.53
207-21 1-5/16
207-22 1-3/8
207   35
207-23 1-7/16
UCP 208-24 1-1/2   49.2 184 136 54 14 23 18 100 19 49.2 M12 1.88
208-25 1-9/16
208   40
UCP 209-26 1-5/8   54 190 146 54 14 23 20 106 19 49.2 M12 2.1
209-27 1-11/16
209-28 1-3/4
209   45
UCP 210-30 1-7/8   57.2 206 159 60 19 26 21 114 19 51.6 M16 2.5
210-31 1-15/16
210   50
UCP 211-32 2   63.5 219 172 60 19 26 23 126 22.2 55.6 M16 3.3
211-34 2-1/8
211   55
211-35 2-3/16
UCP 212-36 2-1/4   69.9 241 186 70 23 26 25 138 25.4 65.1 M16 5.5
212   60
212-38 2-3/8
212-39 2-7/16
UCP 213-40 2-1/2   76.2 265 203 70 23 31 27 151 25.4 65.1 M20 5.6
213   65
UCP 214-44 2-3/4   79.4 266 210 72 25 31 27 155 34.1 85.7 M20 7
214   70
UCP 215   75 82.6 274 217 74 25 31 28 161.6 37.3 92.1 M20 7.8
215-48 3
UCP 216   80 88.9 292 232 78 25 31 30 174 37.3 95.2 M20 8.3
UCP 217-52 3-1/4   95.2 310 247 83 25 24 32 186 34.1 85.7 M20 10.8
217   85
UCP 218-56 3-1/2   101.6 326 262 88 27 34 33 198 39.7 96 M22 13
218   90

Housing Material:

HT200 or QT450-10, QT450-10 is only for PFTD2 series and FCT2 series.



Bearing Material

Chrome Steel: Chemical Composition of Chrome Steel

Steel No

Chemical Composition%

C

Si

Mn

P

S

Cr

Gcr15

0.95-1.05

0.15-0.35

0.20-0.40

≤0.027

≤0.02

1.30-1.65

The Interchange of Chrome Steel No.

Country

China

ISO

U.S.A

Germany

Japan

Sweden

Bearings
Steel No.

Gcr15

638/XVII 1

(AISI)52100

(DIN)100Cr6

(Jis)SVJ2

SKF3

● Material is suitable for applications.

● Grease fitting for relubrication is included – enabling maximized service life under severe operating conditions.

● Housings can be painted with different color water-based alkyd/acryl paint

● Unpainted surfaces are protected by a solventless rust inhibitor.

●Housings can be ordered as separate products for combination with any insert ball bearing.



Packing

Tube packing, single box packing or other industrial packing are all available.Special requirements should be mentioned in the order
