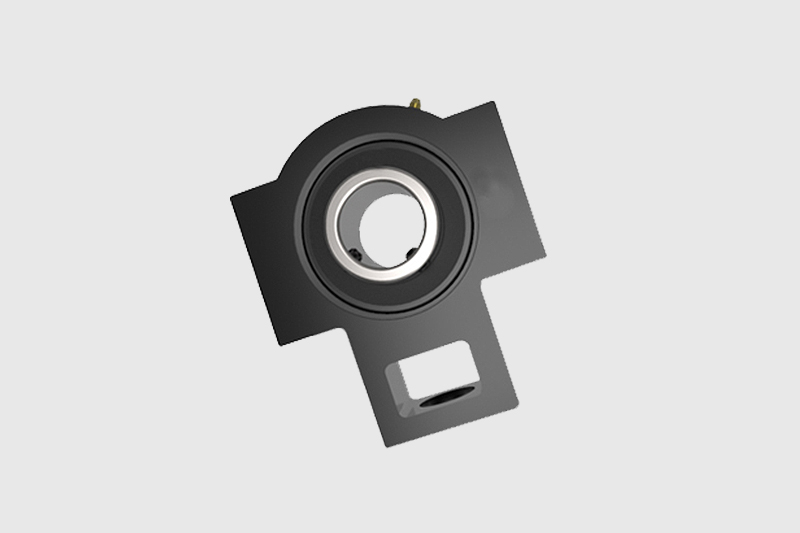

Unit No. | Shaft | Dimensions (mm) | Weight kg | ||||||||||||||||
d | |||||||||||||||||||
(in.) | (mm) | N1 | L2 | H2 | N2 | N | L3 | A1 | H1 | H | L | A | A2 | L1 | B | S | |||
UCT | 201 | 12 | 16 | 10 | 51 | 32 | 19 | 51 | 12 | 76 | 89 | 94 | 32 | 21 | 61 | 31 | 12.7 | 0.72 | |
201-8 | 1/2 | ||||||||||||||||||
UCT | 202 | 15 | 16 | 10 | 51 | 32 | 19 | 51 | 12 | 76 | 89 | 94 | 32 | 21 | 61 | 31 | 12.7 | 0.72 | |
202-10 | 5/8 | ||||||||||||||||||
UCT | 203 | 17 | 16 | 10 | 51 | 32 | 19 | 51 | 12 | 76 | 89 | 94 | 32 | 21 | 61 | 31 | 12.7 | 0.72 | |
203-11 | 11-16 | ||||||||||||||||||
UCT | 204-12 | 3/4 | 16 | 10 | 51 | 32 | 19 | 51 | 12 | 76 | 89 | 94 | 32 | 21 | 61 | 31 | 12.7 | 0.72 | |
204 | 20 | ||||||||||||||||||
UCT | 205-14 | 7/8 | 16 | 10 | 51 | 32 | 19 | 51 | 12 | 76 | 89 | 97 | 32 | 24 | 62 | 34.1 | 14.3 | 0.8 | |
205-15 | 15/16 | ||||||||||||||||||
205 | 25 | ||||||||||||||||||
205-16 | 1 | ||||||||||||||||||
UCT | 206-18 | 1-1/8 | 16 | 10 | 56 | 37 | 22 | 57 | 12 | 89 | 102 | 113 | 37 | 28 | 70 | 38.1 | 15.9 | 1.26 | |
206 | 30 | ||||||||||||||||||
206-19 | 1-3/15 | ||||||||||||||||||
206-20 | 1-1/4 | ||||||||||||||||||
UCT | 207-20 | 1-1/4 | 16 | 13 | 64 | 37 | 22 | 64 | 12 | 69 | 102 | 129 | 37 | 30 | 78 | 42.9 | 17.5 | 1.68 | |
207-21 | 1-5/16 | ||||||||||||||||||
207-22 | 1-3/8 | ||||||||||||||||||
207 | 35 | ||||||||||||||||||
207-23 | 1-7/16 | ||||||||||||||||||
UCT | 208-24 | 1-1/2 | 19 | 16 | 83 | 49 | 29 | 83 | 16 | 102 | 114 | 144 | 49 | 33 | 88 | 49.2 | 19 | 2.28 | |
208-25 | 1-9/16 | ||||||||||||||||||
208 | 40 | ||||||||||||||||||
UCT | 209-26 | 1-5/8 | 19 | 16 | 83 | 49 | 29 | 88 | 16 | 102 | 117 | 149 | 49 | 35 | 87 | 49.2 | 19 | 2.52 | |
209-27 | 1-11/16 | ||||||||||||||||||
209-28 | 1-3/4 | ||||||||||||||||||
209 | 45 | ||||||||||||||||||
UCT | 210-30 | 1-7/8 | 19 | 16 | 83 | 49 | 29 | 88 | 16 | 102 | 117 | 149 | 49 | 37 | 90 | 51.6 | 19 | 2.75 | |
210-31 | 1-15/16 | ||||||||||||||||||
210 | 50 | ||||||||||||||||||
UCT | 211-32 | 2 | 25 | 19 | 102 | 64 | 35 | 96 | 22 | 130 | 146 | 171 | 64 | 38 | 106 | 55.6 | 22.2 | 4.1 | |
211-34 | 2-1/8 | ||||||||||||||||||
211 | 55 | ||||||||||||||||||
211-35 | 2-3/16 | ||||||||||||||||||
UCT | 212-35 | 2-1/4 | 32 | 21 | 111 | 70 | 41 | 121 | 26 | 151 | 167 | 224 | 64 | 42 | 119 | 65.1 | 25.4 | 4.9 | |
212 | 60 | ||||||||||||||||||
212-38 | 2-3/8 | ||||||||||||||||||
212-39 | 2-7/16 | ||||||||||||||||||
UCT | 213-40 | 2-1/2 | 32 | 21 | 111 | 70 | 41 | 121 | 26 | 151 | 167 | 224 | 70 | 44 | 137 | 85.1 | 25.4 | 6.7 | |
213 | 65 | ||||||||||||||||||
UCT | 214-44 | 2-3/4 | 32 | 21 | 111 | 70 | 41 | 121 | 26 | 151 | 167 | 224 | 70 | 46 | 137 | 74.6 | 30.2 | 6.9 | |
214 | 70 | ||||||||||||||||||
UCT | 215 | 75 | 32 | 21 | 111 | 70 | 41 | 121 | 26 | 151 | 167 | 232 | 70 | 48 | 40 | 77.8 | 33.3 | 7.4 | |
215-48 | 3 |
Housing Material:
HT200 or QT450-10, QT450-10 is only for PFTD2 series and FCT2 series.
Bearing Material
Chrome Steel: Chemical Composition of Chrome Steel
Steel No |
Chemical Composition% |
|||||
C |
Si |
Mn |
P |
S |
Cr |
|
Gcr15 |
0.95-1.05 |
0.15-0.35 |
0.20-0.40 |
≤0.027 |
≤0.02 |
1.30-1.65 |
The Interchange of Chrome Steel No.
Country |
China |
ISO |
U.S.A |
Germany |
Japan |
Sweden |
Bearings |
Gcr15 |
638/XVII 1 |
(AISI)52100 |
(DIN)100Cr6 |
(Jis)SVJ2 |
SKF3 |
● Material is suitable for applications.
● Grease fitting for relubrication is included – enabling maximized service life under severe operating conditions.
● Housings can be painted with different color water-based alkyd/acryl paint
● Unpainted surfaces are protected by a solventless rust inhibitor.
●Housings can be ordered as separate products for combination with any insert ball bearing.
Packing
Tube packing, single box packing or other industrial packing are all available.Special requirements should be mentioned in the order
Our own NSJ package is as below
