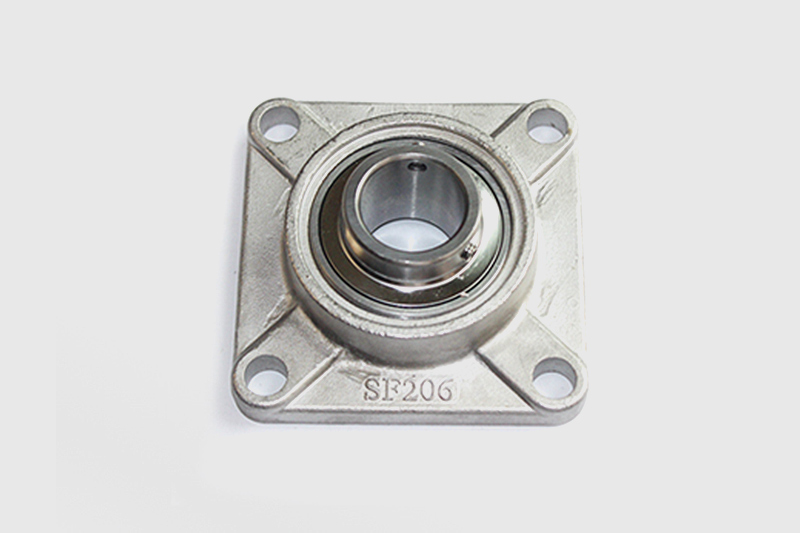

Stainless steel Quality Pillow Block Bearing Units UCF series

SYSTEM DESCRIPTION:

Stainless steel Quality Pillow Block Bearing Units UCF series

TECHNICAL DRAWING:

Bearing Unit No.	Bore Dia		Dimensions(mm)								Bearing No.	Housing No.	Weight
Bearing Unit No.	in	mm	a	e	i	g	L	N	E	S	Bearing No.	Housing No.	(kg)
SUCF201		12	86	64	15	11	25.5	12	33.3	12.7	SUC201	SF203	1
SUCF201-8	1/2										SUC201-8	SF203	1
SUCF202		15									SUC202	SF203	1
SUCF202-10	5/8										SUC202-10	SF203	1
SUCF203		17									SUC203	SF203	1
SUCF203-11	11/28										SUC203-11	SF203	1
SUCF204		20	86	64	15	12	25.5	12	33.3	12.7	SUC204	SF204	0.95
SUCF204-12	3/4		86	64	15	12	25.5	12	33.3	12.7	SUC204-12	SF204	0.95
SUCF205		25	95	70	16	14	27	12	35.8	14.3	SUC205	SF205	1.2
SUCF205-14	7/8										SUC205-14	SF205	1.2
SUCF205-15	15/16										SUC205-15	SF205	1.2
SUCF205-16	1										SUC205-16	SF205	1.2
SUCF206		30	108	83	18	14.3	31	12	40.2	15.9	SUC206	SF206	1.89
SUCF206-17	1-11/16										SUC206-17	SF206	1.89
SUCF206-18	1-1/8										SUC206-18	SF206	1.89
SUCF206-19	1-3/16										SUC206-19	SF206	1.89
SUCF206-20	1-1/4										SUC206-20	SF206	1.89
SUCF207		35	117	92	19	15.5	34	14	44.4	17.5	SUC207	SF207	2.39
SUCF207-20	1-1/4										SUC207-20	SF207	2.39
SUCF207-21	15/16										SUC207-21	SF207	2.39
SUCF207-22	1-3/8										SUC207-22	SF207	2.39
SUCF207-23	1-7/16										SUC207-23	SF207	2.39
SUCF208		40	130	102	21	15.5	36	16	51.2	19	SUC208	SF208	2.79
SUCF208-24	1-1/2										SUC208-24	SF208	2.79
SUCF208-25	1-9/16										SUC208-25	SF208	2.79
SUCF209		45	137	105	22	17.5	38	16	52.2	19	SUC209	SF209	3.18
SUCF209-26	1-5/8										SUC209-26	SF209	3.18
SUCF209-27	1-11/16										SUC209-27	SF209	3.18
SUCF209-28	1-3/4										SUC209-28	SF209	3.18
SUCF210		50	143	111	22	17.5	40	16	54.6	19	SUC210	SF210	3.68
SUCF210-30	1-7/8										SUC210-30	SF210	3.68
SUCF210-31	1-15/16										SUC210-31	SF210	3.68
SUCF211		55	162	130	25	19.5	43	19	58.4	22.2	SUC211	SF211	3.4
SUCF211-32	2										SUC211-32	SF211	3.4
SUCF211-34	2-1/8										SUC211-34	SF211	3.4
SUCF211-35	2-3/16										SUC211-35	SF211	3.4
SUCF212		60	175	143	29	19.5	48	19	68.7	25.4	SUC212	SF212	4.17
SUCF212-36	2-1/4										SUC212-36	SF212	4.17
SUCF212-38	2-3/8										SUC212-38	SF212	4.17
SUCF212-39	2-7/16										SUC212-39	SF212	4.17
SUCF213		65	187	149	30	23	50	19	69.7	25.4	SUC213	SF213	5.32
SUCF213-40	2-1/2										SUC213-40	SF213	5.32
SUCF213-41	2-9/16										SUC213-41	SF213	5.32
SUCF214		70	193	152	31	23	54	19	75.4	30.2	SUC214	SF214	5.92
SUCF214-42	2-5/8										SUC214-42	SF214	5.92
SUCF214-43	2-11/16										SUC214-43	SF214	5.92
SUCF214-44	2-3/4										SUC214-44	SF214	5.92
SUCF215		75	200	159	34	23	56	19	78.5	33.3	SUC215	SF215	6.65
SUCF215-45	2-13/16										SUC215-45	SF215	6.65
SUCF215-46	2-7/8										SUC215-46	SF215	6.65
SUCF215-47	2-15/16										SUC215-47	SF215	6.65
SUCF215-48	3										SUC215-48	SF215	6.65
SUCF216		80	208	165	34	24	58	23	83.3	33.3	SUC216	SF216	7.89
SUCF216-50	3-1/8		208	165	34	24	58	23	83.3	33.3	SUC216-50	SF216	7.89
SUCF217		85	220	175	36	25	63	23	87.6	34.1	SUC217	SF217	9.18
SUCF217-52	3-1/4		220	175	36	25	63	23	87.6	34.1	SUC217-52	SF217	9.18
SUCF218		90	235	187	40	26	68	23	96.3	39.7	SUC218	SF218	11.2
SUCF218-56	3-1/2		235	187	40	26	68	23	96.3	39.7	SUC218-56	SF218	11.2

AISI 440C Material:

Higher resistance to rust and corrosion than 52100 chrome bearing steel, Please note that AISI 440C will have magnetic properties.

Chemical Composition: C:0.95-1.20, Si≤1.00，Mn≤1.00, P≤0.04, S≤0.03, Cr:16.0-18.0,Mo:≤0.75

AISI 304 Material:

AISI 304 stainless steel, widely used as corrosion- and heat-resistant steel and also as nonmagnetic steel, is suitable in corrosive environments where
AISI 440C stainless steel can not be used.

Chemical Composition: C≤0.08, Si≤0.75，Mn≤2.00, P：0.045, S：0.03, Cr:18.0-20.0,Mo:8.0-10.5，Ni≤0.10

AISI 316L Material:

316L stainless which provides corrosion resistance when compared to conventional steel and 440 stainless bearings.

316L Stainless is the standard molybdenum-bearing stainless steel. The molybdenum gives 316 better overall corrosion resistant properties than Grade 304,
particularly higher resistance to pitting and crevice corrosion in chloride environments.

Chemical Composition: C≤0.03, Si≤1.00，Mn≤2.00, P≤0.045, S≤0.03, Cr:16.0-18.0,Mo:2.0-3.0, Ni:10.0-14.0

Packing

Tube packing, single box packing or other industrial packing are all available.Special requirements should be mentioned in the order

Our own NSJ package is as below
