Wholesale Stainless steel Square Flange Pillow Block Units UCT series Factory, Manufacturers

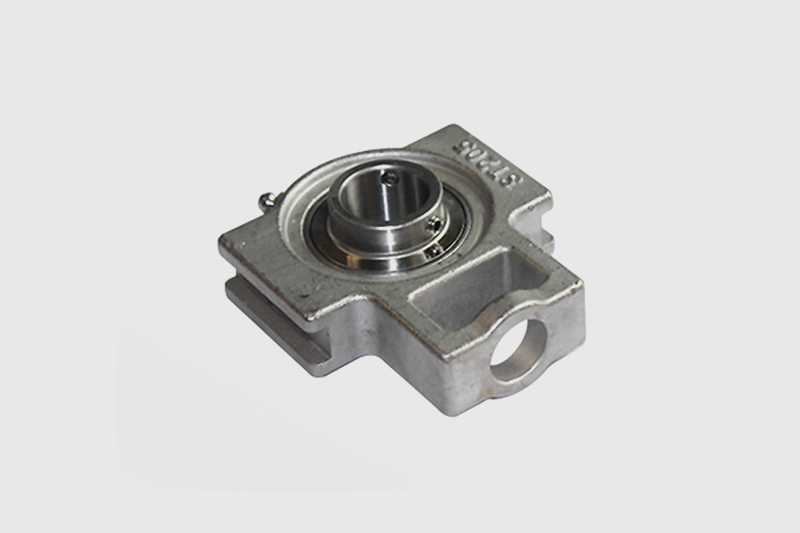

Stainless steel Square Flange Pillow Block Units UCT series

SYSTEM DESCRIPTION:

Stainless steel Square Flange Pillow Block Units UCT series

TECHNICAL DRAWING:

Bearing Unit No.	Bore Dia		Dimensions(mm)															Bearing No.	Housing No.	Weight
	in	mm	w	h	g	b	N	q	o	a	e	p	j	k	L	B	S			(kg)
SUCT201		12	94	61	10	51	19	32	16	89	76	51	32	12	21	31	12.7	SUC201	ST203	0.93
SUCT201-8	1/2																	SUC201-8	ST203	0.93
SUCT202		15																SUC202	ST203	0.93
SUCT202-10	5/8																	SUC202-10	ST203	0.93
SUCT203		17																SUC203	ST203	0.93
SUCT203-11	11/28																	SUC203-11	ST203	0.93
SUCT204		20	94	61	10	51	19	32	16	89	76	51	32	12	21	31	12.7	SUC204	ST204	0.89
SUCT204-12	3/4																	SUC204-12	ST204	0.89
SUCT205		25	97	62	10	51	19	32	16	89	76	51	32	12	24	34.1	14.3	SUC205	ST205	0.99
SUCT205-14	7/8																	SUC205-14	ST205	0.99
SUCT205-15	15/16																	SUC205-15	ST205	0.99
SUCT205-16	1																	SUC205-16	ST205	0.99
SUCT206		30	113	70	10	57	22	37	16	102	89	56	37	12	28	38.1	15.9	SUC206	ST206	1.46
SUCT206-17	1-11/16																	SUC206-17	ST206	1.46
SUCT206-18	1-1/8																	SUC206-18	ST206	1.46
SUCT206-19	1-3/16																	SUC206-19	ST206	1.46
SUCT206-20	1-1/4																	SUC206-20	ST206	1.46
SUCT207		35	129	78	13	64	22	37	16	102	89	64	37	12	30	42.9	17.5	SUC207	ST207	1.81
SUCT207-20	1-1/4																	SUC207-20	ST207	1.81
SUCT207-21	15/16																	SUC207-21	ST207	1.81
SUCT207-22	1-3/8																	SUC207-22	ST207	1.81
SUCT207-23	1-7/16																	SUC207-23	ST207	1.81
SUCT208		40	144	88	16	83	29	49	19	114	102	83	49	16	33	49.2	19	SUC208	ST208	2.68
SUCT208-24	1-1/2																	SUC208-24	ST208	2.68
SUCT208-25	1-9/16																	SUC208-25	ST208	2.68
SUCT209		45	144	87	16	83	29	49	19	117	102	83	49	16	35	49.2	19	SUC209	ST209	2.99
SUCT209-26	1-5/8																	SUC209-26	ST209	2.99
SUCT209-27	1-11/16																	SUC209-27	ST209	2.99
SUCT209-28	1-3/4																	SUC209-28	ST209	2.99
SUCT210		50	149	90	16	86	29	49	19	117	102	83	49	16	37	51.6	19	SUC210	ST210	2.98
SUCT210-30	1-7/8																	SUC210-30	ST210	2.98
SUCT210-31	1-15/16																	SUC210-31	ST210	2.98
SUCT211		55	171	106	19	95	35	64	25	146	130	102	64	22	38	55.6	22.2	SUC211	ST211	4.52
SUCT211-32	2																	SUC211-32	ST211	4.52
SUCT211-34	2-1/8																	SUC211-34	ST211	4.52
SUCT211-35	2-3/16																	SUC211-35	ST211	4.52
SUCT212		60	194	119	19	102	35	64	32	146	130	102	64	22	42	65.1	25.4	SUC212	ST212	5.57
SUCT212-36	2-1/4																	SUC212-36	ST212	5.57
SUCT212-38	2-3/8																	SUC212-38	ST212	5.57
SUCT212-39	2-7/16																	SUC212-39	ST212	5.57
SUCT213		65	224	137	21	121	41	70	32	167	151	111	70	26	44	65.1	25.4	SUC213	ST213	7.6
SUCT213-40	2-1/2																	SUC213-40	ST213	7.6
SUCT213-41	2-9/16																	SUC213-41	ST213	7.6
SUCT214		70	224	137	21	121	41	70	32	167	151	111	70	26	46	61.4	30.2	SUC214	ST214	7.66
SUCT214-42	2-5/8																	SUC214-42	ST214	7.66
SUCT214-43	2-11/16																	SUC214-43	ST214	7.66
SUCT214-44	2-3/4																	SUC214-44	ST214	7.66
SUCT215		75	232	140	21	121	41	70	32	167	151	111	70	26	48	62.5	33.3	SUC215	ST215	8.29
SUCT215-45	2-13/16																	SUC215-45	ST215	8.29
SUCT215-46	2-7/8																	SUC215-46	ST215	8.29
SUCT215-47	2-15/16																	SUC215-47	ST215	8.29
SUCT215-48	3																	SUC215-48	ST215	8.29
SUCT216		80	235	140	21	121	41	70	32	184	165	111	70	26	51	67.3	33.3	SUC216	ST216	9.32
SUCT216-50	3-1/8																	SUC216-50	ST216	9.32
SUCT217		85	260	162	29	157	48	73	38	198	173	124	73	30	54	69.6	34.1	SUC217	ST217	11.96
SUCT217-52	3-1/4																	SUC217-52	ST217	11.96
SUCT218		90	275	170	30	140	48	80	40	215	190	130	80	30	55	78.3	39.7	SUC218	ST218	14.73
SUCT218-56	3-1/2																	SUC218-56	ST218	14.73

AISI 440C Material:

Higher resistance to rust and corrosion than 52100 chrome bearing steel, Please note that AISI 440C will have magnetic properties.

Chemical Composition: C:0.95-1.20, Si≤1.00，Mn≤1.00, P≤0.04, S≤0.03, Cr:16.0-18.0,Mo:≤0.75

AISI 304 Material:

AISI 304 stainless steel, widely used as corrosion- and heat-resistant steel and also as nonmagnetic steel, is suitable in corrosive environments where
AISI 440C stainless steel can not be used.

Chemical Composition: C≤0.08, Si≤0.75，Mn≤2.00, P：0.045, S：0.03, Cr:18.0-20.0,Mo:8.0-10.5，Ni≤0.10

AISI 316L Material:

316L stainless which provides corrosion resistance when compared to conventional steel and 440 stainless bearings.

316L Stainless is the standard molybdenum-bearing stainless steel. The molybdenum gives 316 better overall corrosion resistant properties than Grade 304,
particularly higher resistance to pitting and crevice corrosion in chloride environments.

Chemical Composition: C≤0.03, Si≤1.00，Mn≤2.00, P≤0.045, S≤0.03, Cr:16.0-18.0,Mo:2.0-3.0, Ni:10.0-14.0

Packing

Tube packing, single box packing or other industrial packing are all available.Special requirements should be mentioned in the order

Our own NSJ package is as below
