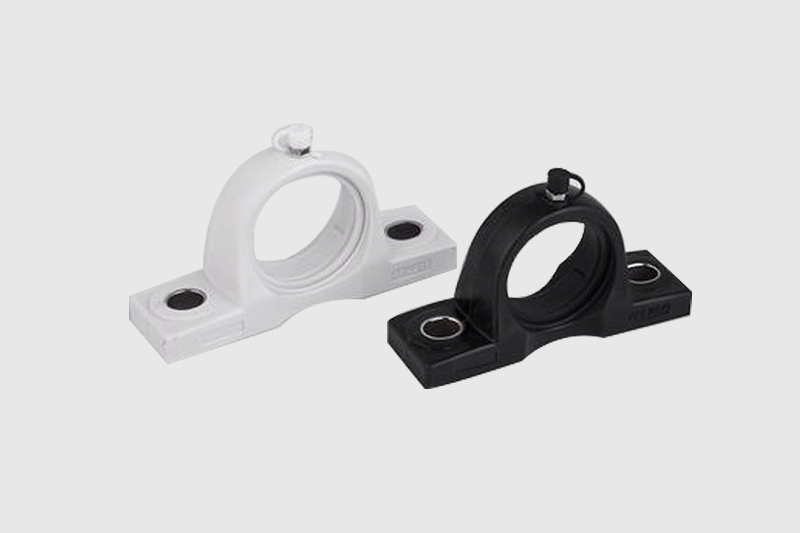

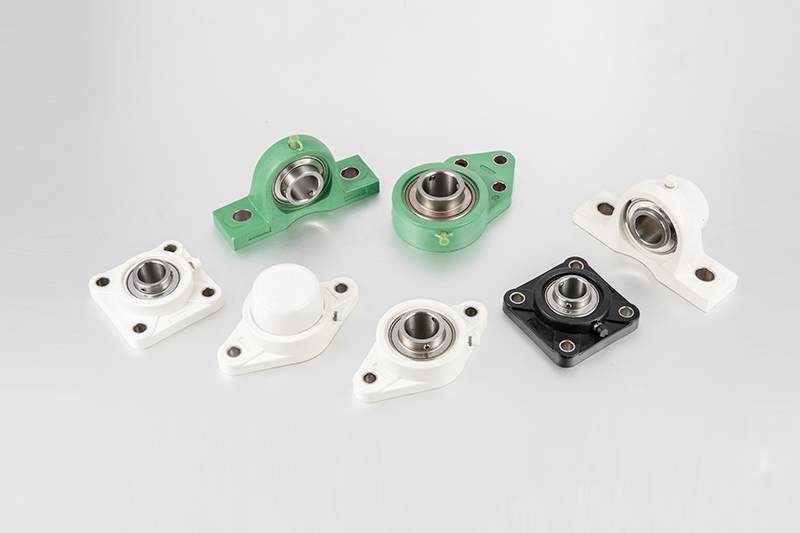

Thermoplastic Pillow Block Units : PPL series
TYPE | d | h | a | e | b | S1 | S2 | g | c | Bi | n | W |
(mm) | kg | |||||||||||
PPL204 | 20 | 33.3 | 127 | 95 | 38 | 11 | 14 | 14.2 | 65.5 | 31 | 12.7 | 0.13 |
PPL205 | 25 | 36.5 | 140.5 | 105 | 38 | 11 | 14 | 14.5 | 71 | 34 | 14.3 | 0.14 |
PPL206 | 30 | 42.9 | 163 | 119 | 46 | 14 | 18 | 17.8 | 84 | 38.1 | 15.9 | 0.24 |
PPL207 | 35 | 47.6 | 168 | 127 | 48 | 14 | 18 | 18 | 94.5 | 42.9 | 17.5 | 0.27 |
PPL208 | 40 | 49.2 | 184 | 137 | 54 | 14 | 18 | 19.5 | 101 | 49.2 | 19 | 0.35 |
PPL209 | 45 | 54 | 192 | 146 | 54 | 17 | 20 | 23 | 106 | 49.2 | 19 | 0.41 |
PPL210 | 50 | 57.2 | 206 | 159 | 60 | 17 | 20 | 23 | 114 | 51.6 | 19 | 0.47 |
Material:PBT
Solid base
Stainless steel grease nipples as standard(sufflx N)

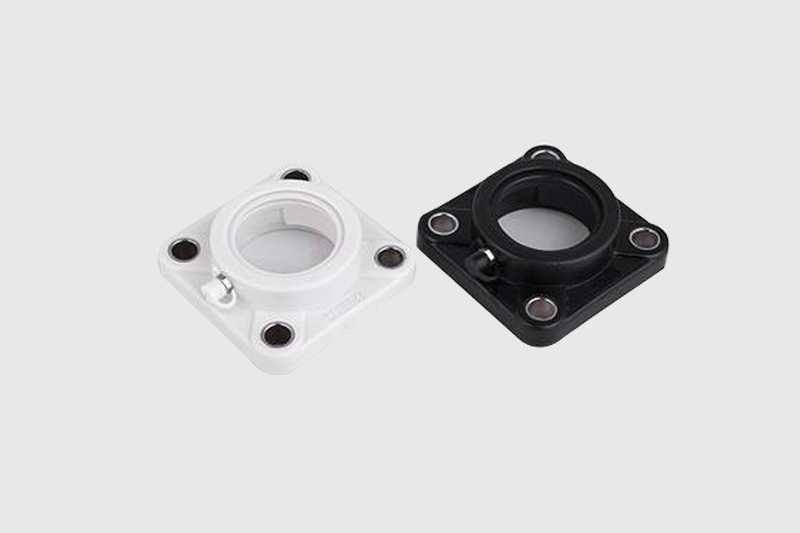

Thermoplastic Square Flange Units : FPL series
TYPE | d | a | e | g | L | s | z | Bi | n | i | W |
(mm) | kg | ||||||||||
FPL204 | 20 | 86 | 63.5 | 13.4 | 27.8 | 11 | 34.6 | 31 | 12.7 | 16.3 | 0.12 |
FPL205 | 25 | 95 | 70 | 14.3 | 28.5 | 11 | 36.7 | 34 | 14.3 | 17 | 0.15 |
FPL206 | 30 | 107 | 83 | 14.3 | 31.5 | 11 | 41.2 | 38.1 | 15.9 | 19 | 0.18 |
FPL207 | 35 | 118 | 92 | 15.5 | 34.5 | 13 | 46.9 | 42.9 | 17.5 | 21.5 | 0.25 |
FPL208 | 40 | 130 | 102 | 17 | 36.5 | 14 | 53.2 | 49.2 | 17.5 | 21.5 | 0.25 |
FPL209 | 45 | 137 | 105 | 19 | 41 | 17 | 54.2 | 49.2 | 19 | 24 | 0.42 |
FPL210 | 50 | 143 | 111 | 21 | 43 | 17 | 57.6 | 51.6 | 19 | 25 | 0.49 |
Material:PBT
Solid base
Stainless steel grease nipples as standard(sufflx N)
