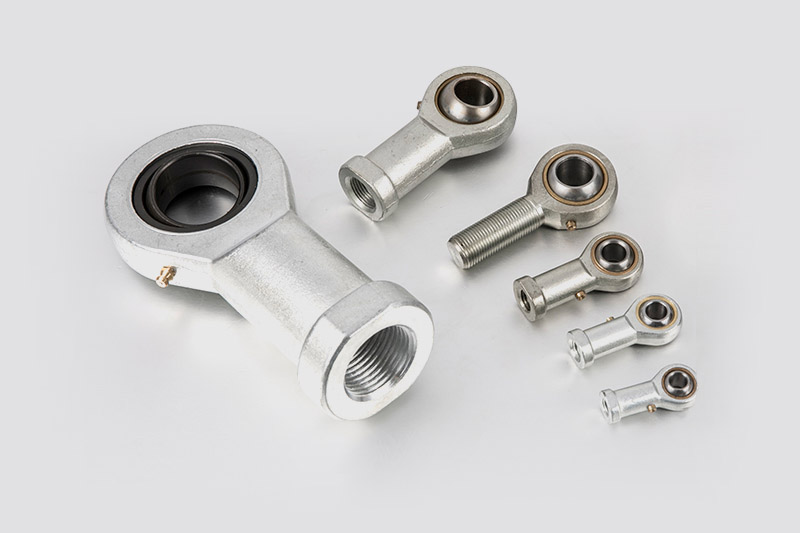

Rod ends PHS（Maintenance required）

SYSTEM DESCRIPTION:

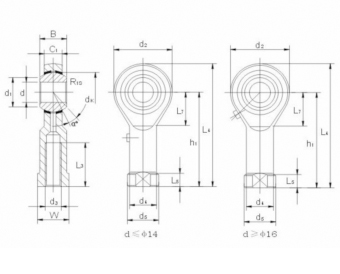

TECHNICAL DRAWING:

PREV：Rod ends POS（Maintenance required）NEXT：RADIAL SPHERICAL Plain Bearings

PRODUCT DETAILS:

Rod body with right or left-hand female thread.

Outer race lined with bronze liner

Surface of rod body zinc plated,rod body with a lubricating hole or grease nipple

Part No.		Dimensions mm															Load ratings kN		Weight kg
		d	d3	B	C1	W	L3	d2	L4	h1	L5	d4	d5	dk	d1	α	dynamic	Static
		d	6h	B	C1	W	min	d2	L4	h1	L5	d4	d5	dk	d1	≈	C	C0
PHS	4	4	M4 x 0.7	7	5.25	8	8	14	31	24	4	8	9.5	9.525	6.5	13	3	5	0.009
PHS	5	5	M5 x 0.8	8	6	9	10	16	35	27	4	8.5	11	11.11	7.7	13	3.25	5.7	0.016
PHS	6	6	M6 x 1	9	6.75	11	12	18	39	30	5	10	13	12.7	8.96	13	4.3	7.2	0.022
PHS	8	8	M8 x 1.25	12	9	14	16	22	47	36	5	12.5	16	15.875	10.4	14	7.2	11.6	0.047
PHS	10	10	M10 x 1.5	14	10.5	17	20	26	56	43	6.5	15	19	19.05	12.9	13	10	14.5	0.077
PHS	10-1	10-1	M10 x 1.25	14	10.5	17	20	26	56	43	6.5	15	19	19.05	12.9	13	10	14.5	0.077
PHS	12	12	M12 x 1.75	16	12	19	22	30	65	50	6.5	17.5	22	22.225	15.4	13	13.4	17	0.1
PHS	12-1	12-1	M12 x 1.25	16	12	19	22	30	65	50	6.5	17.5	22	22.225	15.4	13	13.4	17	0.1
PHS	14	14	M14 x 2	19	13.5	22	25	34	74	57	8	20	25	25.4	16.9	16	17	24	0.16
PHS	14-1	14-1	M14 x 1.5	19	13.5	22	25	34	74	57	8	20	25	25.4	16.9	16	17	24	0.16
PHS	16	16	M16 x 2	21	15	22	28	40	84	64	8	22	27	28.575	19.4	15	21.6	28.5	0.22
PHS	16-1	16-1	M16 x 1.5	21	15	22	28	40	84	64	8	22	27	28.575	19.4	15	21.6	28.5	0.22
PHS	18	18	M18 x 1.5	23	16.5	27	32	44	93	71	10	25	31	31.75	21.9	15	26	42.5	0.32
PHS	20	20	M20 x 1.5	25	18	30	33	50	102	77	10	27.5	34	34.925	24.4	14	31.5	42.5	0.42
PHS	22	22	M22 x 1.5	28	20	32	37	54	111	84	12	30	38	38.1	25.8	15	38	57	0.54
PHS	25	25	M24 x 2	31	22	36	42	60	124	94	12	33.5	42	42.85	29.6	15	47.5	68	0.73
PHS	28	28	M27 x 2	35	24	41	48	66	136	103	14	37	46	47.6	32.3	15	58	75	0.98
PHS	30	30	M30 x 2	37	25	41	51	70	145	110	15	40	50	50.8	34.8	17	64	88	1.1
PHS	30-1	30-1	M27 x 2	37	25	41	51	70	145	110	15	40	50	50.8	34.8	17	64	88	1.1

For left-handthread,please add suffix "L",e.g. PHSL 8.
