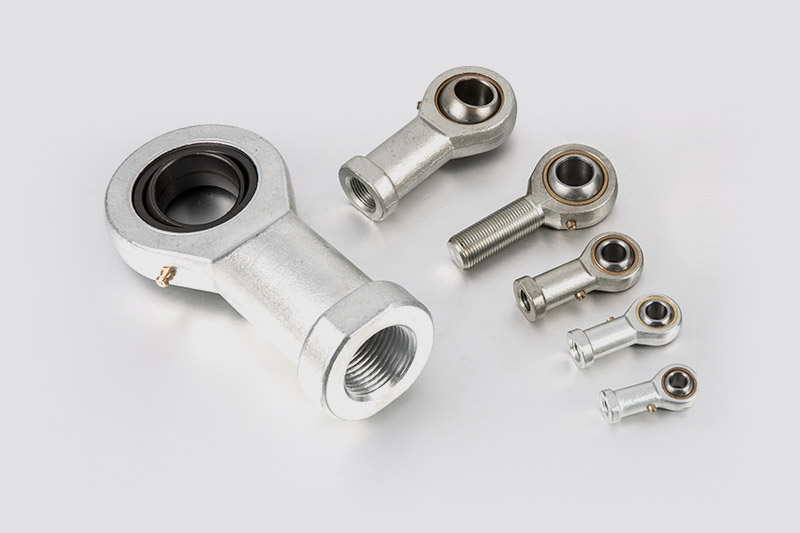

Rod ends SA...E(S),SA..ES 2RS（Maintenance required）

SYSTEM DESCRIPTION:

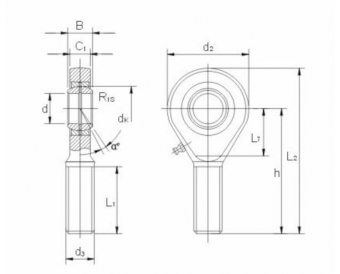

TECHNICAL DRAWING:

PREV：No previous article NEXT：Rod ends SI...E(S),SI..ES 2RS（Maintenance required）

PRODUCT DETAILS:

Rod body with right or left-hand male thread

It is made up of a radial spherical plain bearing GE..E(S) or GE..ES 2RS and rod body

Surface of rod body zinc plated,housing of SA..ES with a lubricating hole or grease nipple

Part No.			Dimensions mm												Load ratings KN		Weight kg
			d	d3	B	C1	L1	d2	L7	h	L2	dk	R1s	α	dynamic	Static
			d	6g	B	C1	min	d2	min	h	L2	dk	R1s	≈	C	C0
SA	6	E*	6	M6 x 1	6	4.4	18	21	12	36	46.5	10	0.3	13	3.4	8.15	0.017
SA	8	E*	8	M8 x 1.25	8	6	22	24	14	42	54	13	0.3	15	5.5	12.9	0.029
SA	10	E*	10	M10 x 1.5	9	7	26	29	15	48	62.5	16	0.3	12	8.15	17.6	0.051
SA	12	E*	12	M12 x 1.75	10	8	28	34	18	54	71	18	0.3	11	10.8	24.5	0.086
SA	15	ES	15	M14 x 2	12	10	34	40	20	63	83	22	0.3	8	17	36	0.14
SA	17	ES	17	M16 x 2	14	11	36	46	23	69	92	25	0.3	10	21.2	45	0.19
SA	20	ES	20	M20 x 1.5	16	13	43	53	27	78	104.5	29	0.6	9	30	60	0.31
SA	25	ES	25	M24x 2	20	17	53	64	32	94	126	35.5	0.6	7	48	83	0.56
SA	30	ES	30	M30 x 2	22	19	65	73	37	110	146.5	40.7	0.6	6	62	110	0.89
SA	35	ES	35	M36 x 3	25	21	82	82	42	140	181	47	0.6	6	80	146	1.4
SA	40	ES	40	M39 x 3	28	23	86	92	48	150	196	53	0.6	7	100	180	1.8
SA	40-1	ES	40	M42 x 3	28	23	86	92	48	150	196	53	0.6	7	100	180	1.85
SA	45	ES	45	M42 x 3	32	27	94	102	52	163	214	60	0.6	7	127	240	2.6
SA	45-1	ES	45	M45 x 3	32	27	94	102	52	163	214	60	0.6	7	127	240	2.66
SA	50	ES	50	M45 x 3	35	30	107	112	60	185	241	66	0.6	6	156	290	3.4
SA	50-1	ES	50	M52 x 3	35	30	107	112	60	185	241	66	0.6	6	156	290	3.5
SA	60	ES	60	M52 x 3	44	38	115	135	75	210	277.5	80	1	6	245	450	5.9
SA	60-1	ES	60	M60 x 4	44	38	115	135	75	210	277.5	80	1	6	245	450	6.02
SA	70	ES	70	M56 x 4	49	42	125	160	87	235	315	92	1	6	315	610	8.2
SA	70-1	ES	70	M72 x 4	49	42	125	160	87	235	315	92	1	6	315	610	8.38
SA	80	ES	80	M64 x 4	55	47	140	180	100	270	360	105	1	6	400	750	12
SA	80-1	ES	80	M80 x 4	55	47	140	180	100	270	360	105	1	6	400	750	12.2

- For left-hand thread, please add suffix "L", e.g. SAL 20 ES

- For bearings d≥15, SA…ES 2RS also available, e.g. SA 20 ES 2RS

- Lubricating hole or grease nipple isn't available for the sizes marked "*"
