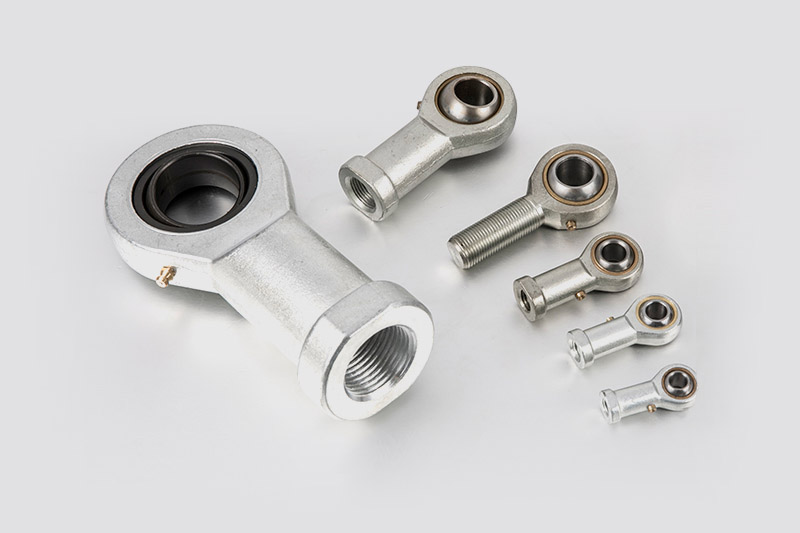

Rod ends SI...E(S),SI..ES 2RS（Maintenance required）

SYSTEM DESCRIPTION:

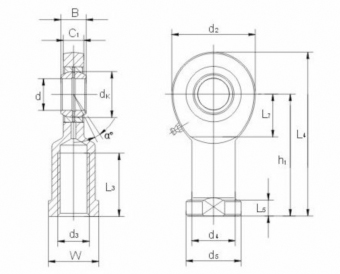

TECHNICAL DRAWING:

PREV：Rod ends SA...E(S),SA..ES 2RS（Maintenance required）NEXT：Rod ends POS（Maintenance required）

PRODUCT DETAILS:

Rod body with right or left-hand female thread

It is made up of a radial spherical plain bearing GE..E(S) or GE..ES 2RS and rod body

Surface of rod body zinc plated,housing of SI..ES with a lubricating hole or grease nipple

Part No.			Dimensions mm														Load ratings KN		Weight kg
			d	d3	B	C1	L3	W	d2	h1	L4	L5	d4	d5	dk	α	dynamic	Static
			d	6g	B	C1	min	W	d2	h1	L4	L5	d4	d5	dk	≈	C	C0
SI	6	E*	6	M6 x 1	6	4.4	11	11	21	30	40.5	5	10	13	10	13	3.4	8.15	0.021
SI	8	E*	8	M8 x 1.25	8	6	15	14	24	36	48	5	12.5	16	13	15	5.5	12.9	0.039
SI	10	E*	10	M10 x 1.5	9	7	20	17	29	43	57.5	6.5	15	19	16	12	8.15	17.6	0.061
SI	12	E*	12	M12 x 1.75	10	8	23	19	34	50	67	6.5	17.5	22	18	11	10.8	24.5	0.096
SI	15	ES	15	M14 x 2	12	10	30	22	40	61	81	8	21	26	22	8	17	36	0.18
SI	17	ES	17	M16 x 2	14	11	34	27	46	67	90	10	24	30	25	10	21.2	45	0.22
SI	20	ES	20	M20 x 1.5	16	13	40	32	53	77	103.5	10	27.5	35	29	9	30	60	0.35
SI	25	ES	25	M24x 2	20	17	48	36	64	94	126	12	33.5	42	35.5	7	48	83	0.64
SI	30	ES	30	M30 x 2	22	19	56	41	73	110	146.5	15	40	50	40.7	6	62	110	0.93
SI	35	ES	35	M36 x 3	25	21	60	50	82	125	166	15	47	58	47	6	80	146	1.3
SI	40	ES	40	M39 x 3	28	23	65	55	92	142	188	18	52	65	53	7	100	180	2
SI	40-1	ES	40	M42 x 3	28	23	65	55	92	142	188	18	52	65	53	7	100	180	1.96
SI	45	ES	45	M42 x 3	32	27	65	60	102	145	196	20	58	70	60	7	127	240	2.5
SI	45-1	ES	45	M45 x 3	32	27	65	60	102	145	196	20	58	70	60	7	127	240	2.44
SI	50	ES	50	M45 x 3	35	30	68	65	112	160	216	20	62	75	66	6	156	290	3.5
SI	50-1	ES	50	M52 x 3	35	30	68	65	112	160	216	20	62	75	66	6	156	290	3.4
SI	60	ES	60	M52 x 3	44	38	70	75	135	175	242.5	20	70	88	80	6	245	450	5.5
SI	60-1	ES	60	M60 x 4	44	38	70	75	135	175	242.5	20	70	88	80	6	245	450	5.38
SI	70	ES	70	M56 x 4	49	42	80	85	160	200	280	20	80	98	92	6	315	610	8.6
SI	70-1	ES	70	M72 x 4	49	42	80	85	160	200	280	20	80	98	92	6	315	610	8.42
SI	80	ES	80	M64 x 4	55	47	85	100	180	230	320	25	95	110	105	6	400	750	12
SI	80-1	ES	80	M80 x 4	55	47	85	100	180	230	320	25	95	110	105	6	400	750	11.8

- For left-hand thread, please add suffix "L", e.g. SIL 20 ES.

- For bearings d≥15, SI…ES 2RS also available, e.g. SI 20 ES 2RS

- Lubricating hole or grease nipple isn't available for the sizes marked "*"
