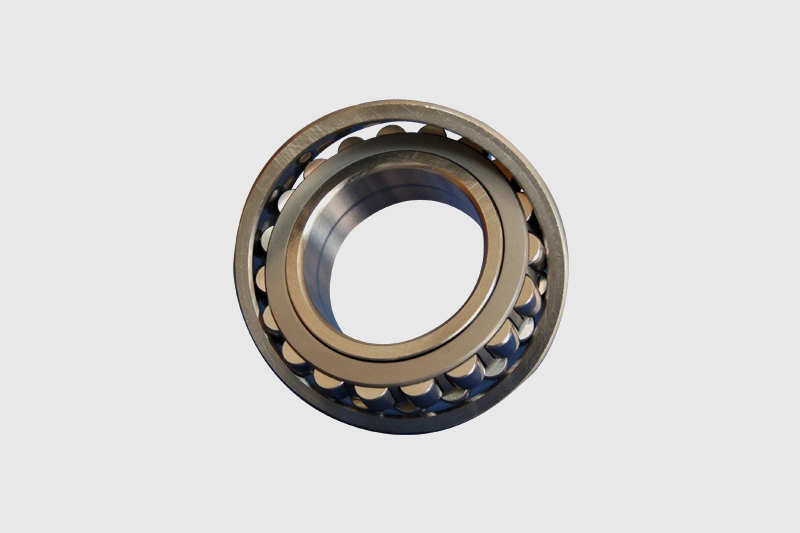

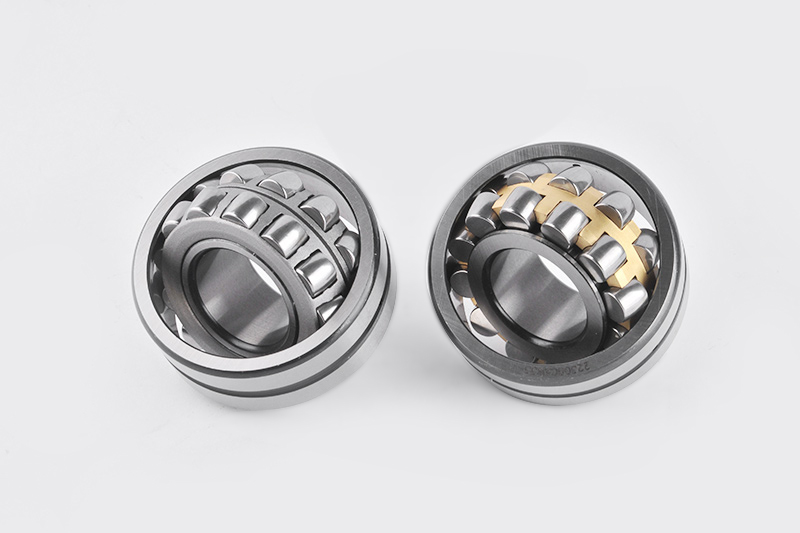

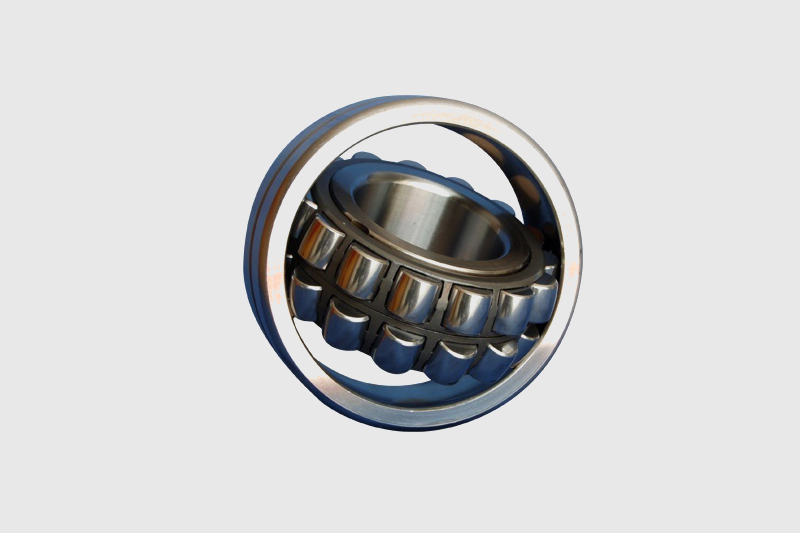

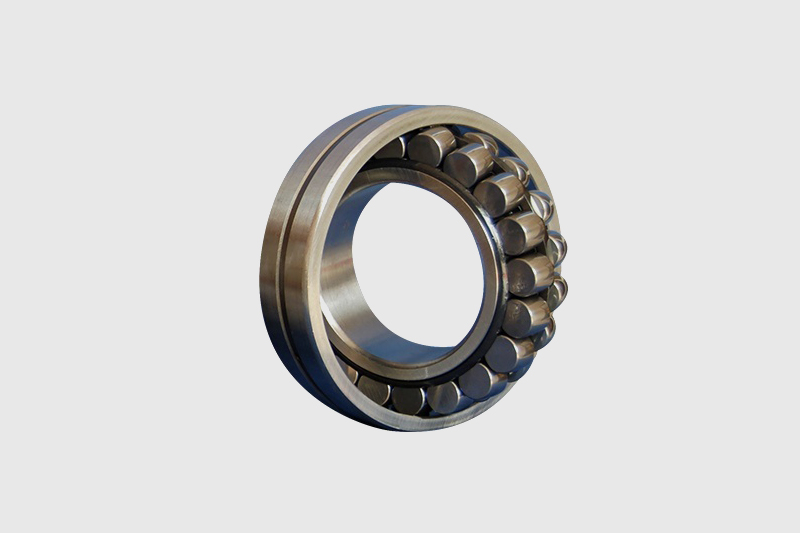

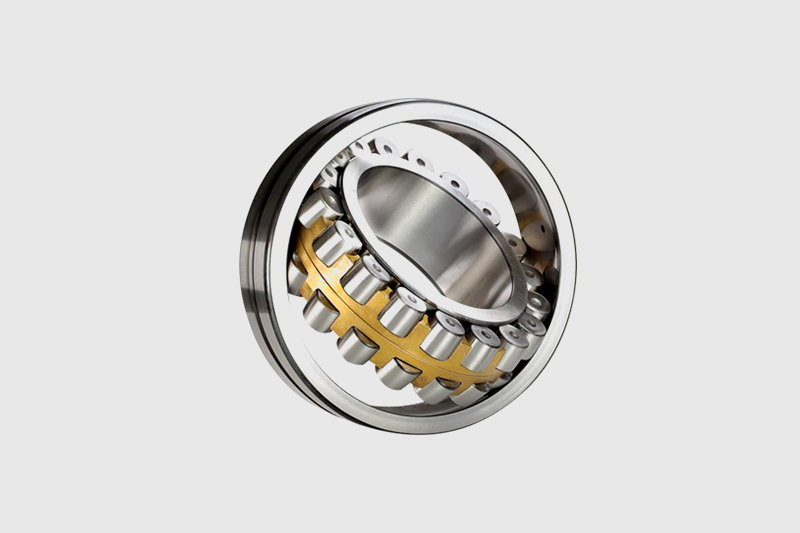

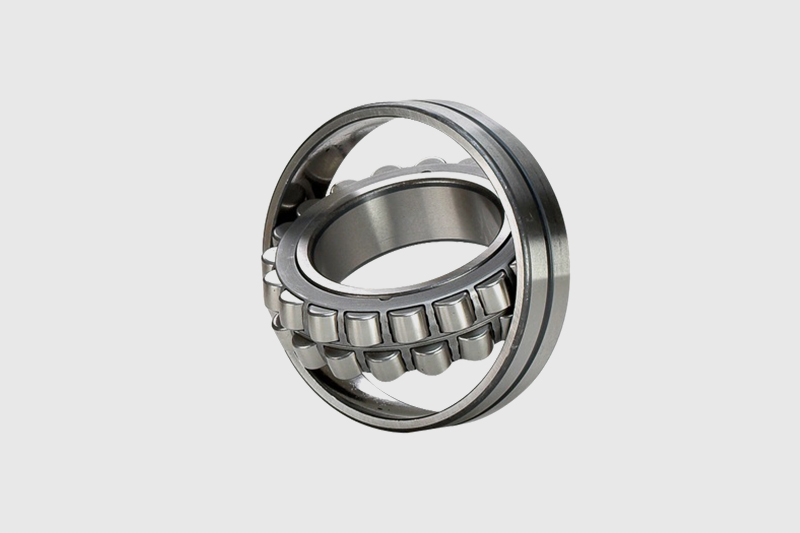

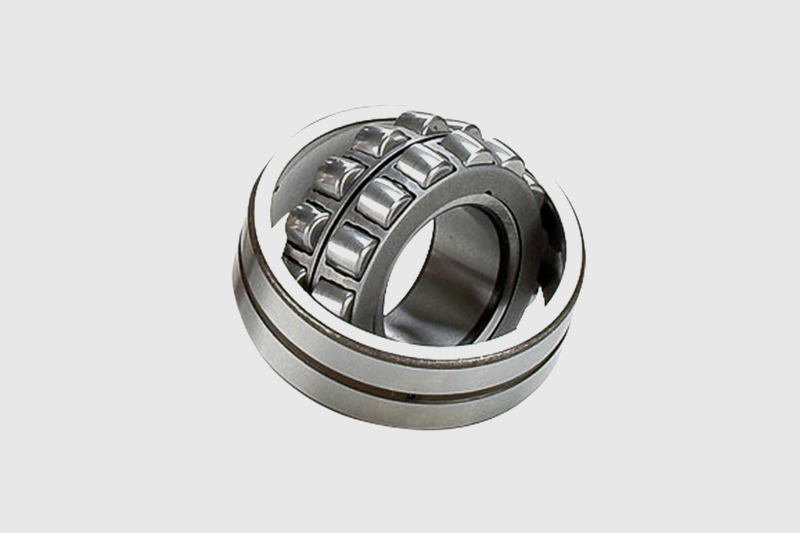

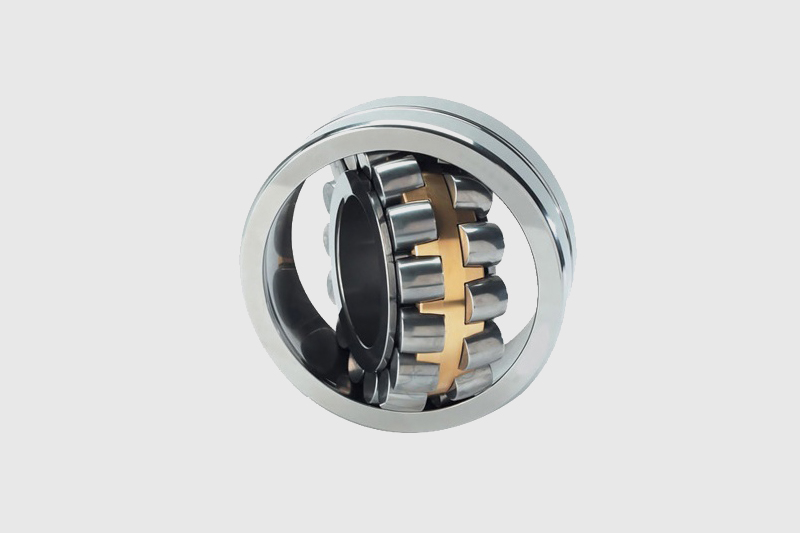

Spherical roller bearings are designed to accommodate heavy radial loads, as well as heavy axial loads in both directions.
Spherical roller bearings have two rows of rollers, a common sphered outer ring raceway and two inner ring raceways inclined at an angle to the bearing axis. The Centre point of the sphere in the outer ring raceway is at the bearing axis. Therefore, the bearings are self-aligning and insensitive to misalignment of the shaft relative to the housing, which can be caused.
Dimensions | load ratings | Bearing No. | Limiting speeds | Mounting dimensions(mm) | Mass | ||||||||
(mm) | (KN) | (r/min) | da | Da | ra | (kg) | |||||||
d | D | B | rsmin | Cr | Cor | Oil | Grease | min | max | max | |||
20 | 52 | 15 | 1.1 | 33.7 | 32.1 | 21304CA | 21304CAK | 9000 | 11000 | 27 | 45 | 1 | 0.175 |
52 | 15 | 1.1 | 35.8 | 35.2 | 21304TN1 | 21304KTN1 | 9000 | 11000 | 27 | 45 | 1 | 0.161 | |
25 | 52 | 18 | 1 | 40 | 42 | 22205CC | 22205CCK | 8000 | 10000 | 30 | 46 | 1 | 0.177 |
52 | 18 | 1 | 40 | 42 | 22205CA | 22205CAK | 8000 | 10000 | 30 | 46 | 1 | 0.177 | |
52 | 18 | 1 | 42.2 | 45 | 22205TN1 | 22205KTN1 | 8000 | 10000 | 30 | 46 | 1 | 0.178 | |
62 | 17 | 1.1 | 42.7 | 45.5 | 21305CA | 21305CAK | 7000 | 8000 | 32 | 55 | 1 | 0.277 | |
62 | 17 | 1.1 | 45.5 | 45.8 | 21305TN1 | 21305KTN1 | 7000 | 8000 | 32 | 55 | 1 | 0.258 | |
30 | 62 | 20 | 1 | 34.5 | 39.3 | 22206MB | 22206MBK | 5300 | 8000 | 36 | 56 | 1 | 0.29 |
62 | 20 | 1 | 56 | 61 | 22206CA | 22206CAK | 6300 | 8000 | 36 | 56 | 1 | 0.3 | |
62 | 20 | 1 | 56 | 61 | 22206CC | 22206CCK | 6700 | 8500 | 36 | 56 | 1 | 0.283 | |
62 | 20 | 1 | 58.5 | 61.3 | 22206TN1 | 22206KTN1 | 6700 | 8500 | 36 | 56 | 1 | 0.271 | |
72 | 19 | 1.1 | 57.5 | 63.9 | 21306CA | 21306CAK | 5500 | 7000 | 37 | 65 | 1 | 0.412 | |
72 | 19 | 1.1 | 63.8 | 65.4 | 21306TN1 | 21306KTN1 | 5500 | 7000 | 37 | 65 | 1 | 0.391 | |
35 | 72 | 23 | 1.1 | 57 | 71.3 | 22207MB | 22207MBK | 5800 | 7000 | 42 | 65 | 1 | 0.43 |
72 | 23 | 1.1 | 75 | 82 | 22207CA | 22207CAK | 6300 | 7700 | 42 | 65 | 1 | 0.45 | |
72 | 23 | 1.1 | 75 | 82 | 22207CC | 22207CCK | 6600 | 8000 | 42 | 65 | 1 | 0.437 | |
72 | 23 | 1.1 | 78.5 | 87 | 22207TN1 | 22207KTNI | 6600 | 8000 | 42 | 65 | 1 | 0.428 | |
80 | 21 | 1.5 | 65.4 | 75.4 | 21307CA | 21307CAK | 5000 | 6300 | 44 | 71 | 1.5 | 0.542 | |
80 | 21 | 1.5 | 74.4 | 77.7 | 21307TN1 | 21307KTN1 | 5000 | 6300 | 44 | 71 | 1.5 | 0.507 | |
40 | 80 | 23 | 1.1 | 62.6 | 72.6 | 22208MB | 22208MBK | 5500 | 6600 | 47 | 73 | 1 | 0.55 |
80 | 23 | 1.1 | 86.9 | 93.5 | 22208CA | 22208CAK | 6000 | 7000 | 47 | 73 | 1 | 0.54 | |
80 | 23 | 1.1 | 86.9 | 93.5 | 22208CC | 22208CCK | 6000 | 7300 | 47 | 73 | 1 | 0.524 | |
80 | 23 | 1.1 | 95.3 | 103 | 22208TN1 | 22208KTN1 | 6000 | 6300 | 47 | 73 | 1 | 0.524 | |
90 | 23 | 1.5 | 88.8 | 99 | 21308CA | 21308CAK | 4600 | 5500 | 49 | 81 | 1.5 | 0.75 | |
90 | 23 | 1.5 | 88.8 | 99 | 21308CC | 21308CCK | 4600 | 5500 | 49 | 81 | 1.5 | 0.743 | |
90 | 23 | 1.5 | 93.9 | 102 | 21308TN1 | 21308KTN1 | 4600 | 5500 | 49 | 81 | 1.5 | 0.717 | |
90 | 33 | 1.5 | 89 | 112 | 22308MB | 22308MBK | 5000 | 6000 | 49 | 81 | 1.5 | 1.03 | |
90 | 33 | 1.5 | 123.6 | 142.1 | 22308CA | 22308CAK | 5300 | 6300 | 49 | 81 | 1.5 | 1 | |
90 | 33 | 1.5 | 123.6 | 142.1 | 22308CC | 22308CCK | 5000 | 7000 | 49 | 81 | 1.5 | 1.02 | |
90 | 33 | 1.5 | 133.9 | 152.4 | 22308TN1 | 22308KTN1 | 5000 | 7000 | 48 | 81 | 1.5 | 1.02 | |
45 | 85 | 23 | 1.1 | 68 | 83 | 22209MB | 22209MBK | 5000 | 6000 | 52 | 78 | 1 | 0.59 |
85 | 23 | 1.1 | 93 | 102 | 22209CA | 22209CAK | 5500 | 7000 | 52 | 78 | 1 | 0.58 | |
85 | 23 | 1.1 | 93 | 102 | 22209CC | 22209CCK | 5500 | 7000 | 52 | 78 | 1 | 0.571 | |
85 | 23 | 1.1 | 97 | 105 | 22209TN1 | 22209KTN1 | 5500 | 7000 | 52 | 78 | 1 | 0.555 | |
100 | 25 | 1.5 | 106 | 118 | 21309CA | 21309CAK | 3200 | 4000 | 54 | 91 | 1.5 | 1.02 | |
100 | 25 | 1.5 | 106 | 118 | 21309CC | 21309CCK | 3200 | 4000 | 54 | 91 | 1.5 | 1 | |
100 | 25 | 1.5 | 111 | 124 | 21309TN1 | 21309KTN1 | 3200 | 4000 | 54 | 91 | 1.5 | 0.949 | |
100 | 36 | 1.5 | 130 | 152 | 22309MB | 22309MBK | 3600 | 4500 | 54 | 91 | 1.5 | 1.4 | |
100 | 36 | 1.5 | 156 | 175 | 22309CA | 22309CAK | 4800 | 5800 | 54 | 91 | 1.5 | 1.38 | |
100 | 36 | 1.5 | 156 | 175 | 22309CC | 22309CCK | 4800 | 5800 | 54 | 91 | 1.5 | 1.37 | |
100 | 36 | 1.5 | 165 | 191 | 22309TN1 | 22309KTN1 | 4000 | 5300 | 54 | 91 | 1.5 | 1.39 | |
50 | 90 | 23 | 1.1 | 70 | 89 | 22210MB | 22210MBK | 3800 | 4800 | 57 | 83 | 1 | 0.87 |
90 | 23 | 1.1 | 95 | 112 | 22210CA | 22210CAK | 4600 | 5400 | 57 | 83 | 1 | 0.62 | |
90 | 23 | 1.1 | 95 | 112 | 22210CC | 22210CCK | 4600 | 5400 | 57 | 83 | 1 | 0.614 | |
90 | 23 | 1.1 | 99 | 113 | 22210TN1 | 22210KTN1 | 4600 | 5400 | 57 | 83 | 1 | 0.596 | |
110 | 27 | 2 | 124 | 144 | 21310CA | 21310CAK | 2800 | 3800 | 60 | 100 | 2 | 1.3 | |
110 | 27 | 2 | 129 | 144 | 21310CC | 21310CCK | 2800 | 3800 | 60 | 100 | 2 | 1.3 | |
110 | 27 | 2 | 129 | 144 | 21310TN1 | 21310KTN1 | 2800 | 3800 | 60 | 100 | 2 | 1.22 | |
110 | 40 | 2 | 145 | 175 | 22310MB | 22310MBK | 3400 | 4300 | 60 | 100 | 2 | 1.9 | |
110 | 40 | 2 | 185 | 216 | 22310CA | 22310CAK | 4600 | 5600 | 60 | 100 | 2 | 1.85 | |
110 | 40 | 2 | 185 | 216 | 22310CC | 22310CCK | 4600 | 5600 | 60 | 100 | 2 | 1.79 | |
110 | 40 | 2 | 198 | 235 | 22310TN1 | 22310KTN1 | 4600 | 5600 | 60 | 100 | 2 | 1.84 | |
55 | 100 | 25 | 1.5 | 82 | 110 | 22211MB | 22211MBK | 3400 | 4300 | 64 | 91 | 1.5 | 0.86 |
100 | 25 | 1.5 | 115 | 139 | 22211CA | 22211CAK | 4000 | 5000 | 64 | 91 | 1.5 | 0.84 | |
100 | 25 | 1.5 | 115 | 139 | 22211CC | 22211CCK | 4000 | 5200 | 64 | 91 | 1.5 | 0.847 | |
100 | 25 | 1.5 | 122 | 144 | 22211TN1 | 22211KTN1 | 4000 | 5000 | 64 | 91 | 1.5 | 0.823 | |
120 | 29 | 2 | 146 | 175 | 21311CA | 21311CAK | 2600 | 3400 | 65 | 110 | 2 | 1.65 | |
120 | 29 | 2 | 146 | 175 | 21311CC | 21311CCK | 2600 | 3400 | 65 | 110 | 2 | 1.65 | |
120 | 29 | 2 | 149 | 170 | 21311TN1 | 21311KTN1 | 2600 | 3400 | 65 | 110 | 2 | 1.57 | |
120 | 43 | 2 | 170 | 204 | 22311MB | 22311MBK | 3000 | 3800 | 65 | 110 | 2 | 2.4 | |
120 | 43 | 2 | 224 | 258 | 22311CA | 22311CAK | 4000 | 4800 | 65 | 110 | 2 | 2.35 | |
120 | 43 | 2 | 226 | 260 | 22311CC | 22311CCK | 4000 | 4800 | 65 | 110 | 2 | 2.31 | |
60 | 110 | 28 | 1.5 | 101 | 126 | 22212MB | 22212MBK | 3200 | 4000 | 69 | 101 | 1.5 | 1.22 |
110 | 28 | 1.5 | 140 | 166 | 22212CA | 22212CAK | 3600 | 4500 | 69 | 101 | 1.5 | 1.2 | |
110 | 28 | 1.5 | 140 | 166 | 22212CC | 22212CCK | 3600 | 4500 | 69 | 101 | 1.5 | 1.15 | |
130 | 31 | 2.1 | 167 | 201 | 21312CA | 21312CAK | 2400 | 3200 | 72 | 118 | 2.1 | 2.08 | |
130 | 31 | 2.1 | 167 | 201 | 21312CC | 21312CCK | 2400 | 3200 | 72 | 118 | 2.1 | 2.08 | |
130 | 46 | 2.1 | 193 | 243 | 22312MB | 22312MBK | 2800 | 3600 | 72 | 118 | 2.1 | 3 | |
130 | 46 | 2.1 | 255 | 294 | 22312CA | 22312CAK | 3800 | 4400 | 72 | 118 | 2.1 | 2.95 | |
130 | 46 | 2.1 | 255 | 301 | 22312CC | 22312CCK | 3800 | 4400 | 72 | 118 | 2.1 | 2.88 | |
65 | 120 | 31 | 1.5 | 112 | 158 | 22213MB | 22213MBK | 2800 | 3600 | 74 | 111 | 1.5 | 1.63 |
120 | 31 | 1.5 | 165 | 207 | 22213CA | 22213CAK | 3600 | 4800 | 74 | 111 | 1.5 | 1.6 | |
120 | 31 | 1.5 | 165 | 207 | 22213CC | 22213CCK | 3600 | 4800 | 74 | 111 | 1.5 | 1.54 | |
140 | 33 | 2.1 | 188 | 235 | 21313CA | 21313CAK | 2200 | 3000 | 77 | 128 | 2.1 | 2.57 | |
140 | 33 | 2.1 | 188 | 235 | 21313CC | 21313CCK | 2200 | 3000 | 77 | 128 | 2.1 | 2.57 | |
140 | 48 | 2.1 | 222 | 296 | 22313MB | 22313MBK | 2400 | 3200 | 77 | 128 | 2.1 | 3.6 | |
140 | 48 | 2.1 | 282 | 342 | 22313CA | 22313CAK | 3600 | 4200 | 77 | 128 | 2.1 | 3.55 | |
140 | 48 | 2.1 | 282 | 242 | 22313CC | 22313CCK | 3600 | 4200 | 77 | 128 | 2.1 | 3.47 | |
70 | 125 | 31 | 1.5 | 126 | 175 | 22214MB | 22214MBK | 2600 | 3400 | 79 | 116 | 1.5 | 1.66 |
125 | 31 | 1.5 | 170 | 221 | 22214CA | 22214CAK | 3600 | 4600 | 79 | 116 | 1.5 | 1.7 | |
125 | 31 | 1.5 | 170 | 221 | 22214CC | 22214CCK | 3600 | 4600 | 79 | 116 | 1.5 | 1.6 | |
150 | 35 | 2.1 | 218 | 276 | 21314CA | 21314CAK | 2000 | 2800 | 82 | 138 | 2.1 | 3.11 | |
150 | 35 | 2.1 | 218 | 276 | 21314CC | 21314CCK | 2000 | 2800 | 82 | 138 | 2.1 | 3.11 | |
150 | 51 | 2.1 | 265 | 325 | 22314MB | 22314MBK | 2200 | 3000 | 82 | 138 | 2.1 | 4.4 | |
150 | 51 | 2.1 | 321 | 373 | 22314CA | 22314CAK | 3600 | 4000 | 82 | 138 | 2.1 | 4.4 | |
150 | 51 | 2.1 | 321 | 407 | 22314CC | 22314CCK | 3600 | 4000 | 82 | 138 | 2.1 | 4.34 | |
75 | 130 | 31 | 1.5 | 120 | 146 | 22215MB | 22215MBK | 2400 | 3200 | 84 | 121 | 1.5 | 1.75 |
130 | 31 | 1.5 | 172 | 222 | 22215CA | 22215CAK | 3400 | 4200 | 84 | 121 | 1.5 | 1.8 | |
130 | 31 | 1.5 | 172 | 222 | 22215CC | 22215CCK | 3400 | 4200 | 84 | 121 | 1.5 | 1.69 | |
160 | 37 | 2.1 | 245 | 311 | 21315CA | 21315CAK | 1900 | 2600 | 87 | 148 | 2.1 | 3.76 | |
160 | 37 | 2.1 | 245 | 311 | 21315CC | 21315CCK | 1900 | 2600 | 87 | 148 | 2.1 | 3.76 | |
160 | 55 | 2.1 | 290 | 400 | 22315MB | 22315MBK | 2000 | 2800 | 87 | 148 | 2.1 | 5.4 | |
160 | 55 | 2.1 | 352 | 451 | 22315CA | 22315CA | 3000 | 3600 | 87 | 148 | 2.1 | 5.25 | |
160 | 55 | 2.1 | 358 | 461 | 22315CC | 22315CC | 3000 | 3600 | 87 | 148 | 2.1 | 5.28 | |
80 | 140 | 33 | 2 | 140 | 220 | 22216MB | 22216MBK | 2200 | 3000 | 90 | 130 | 2 | 2.2 |
140 | 33 | 2 | 210 | 265 | 22216CA | 22216CAK | 3200 | 3800 | 90 | 130 | 2 | 2.2 | |
140 | 33 | 2 | 210 | 265 | 22216CC | 22216CCK | 3200 | 3800 | 90 | 130 | 2 | 2.13 | |
170 | 39 | 2.1 | 268 | 359 | 21316CA | 21316CAK | 1800 | 2400 | 92 | 158 | 2.1 | 4.47 | |
170 | 39 | 2.1 | 268 | 359 | 21316CC | 21316CCK | 1800 | 2400 | 92 | 158 | 2.1 | 4.47 | |
170 | 58 | 2.1 | 320 | 447 | 22316MB | 22316MBK | 1900 | 2600 | 92 | 158 | 2.1 | 6.4 | |
170 | 58 | 2.1 | 410 | 513 | 22316CA | 22316CAK | 2800 | 3400 | 92 | 158 | 2.1 | 6.39 | |
170 | 58 | 2.1 | 410 | 523 | 22316CC | 22316CCK | 2800 | 3400 | 92 | 158 | 2.1 | 6.32 | |
85 | 150 | 36 | 2 | 149 | 235 | 22217MB | 22217MBK | 2000 | 2800 | 95 | 140 | 2 | 2.8 |
150 | 36 | 2 | 256 | 330 | 22217CA | 22217CAK | 3000 | 3800 | 95 | 140 | 2 | 2.7 | |
150 | 36 | 2 | 256 | 330 | 22217CC | 22217CCK | 3000 | 3800 | 95 | 140 | 2 | 2.67 | |
180 | 41 | 3 | 307 | 397 | 21317CA | 21317CAK | 1700 | 2200 | 99 | 166 | 2.5 | 5.23 | |
180 | 41 | 3 | 307 | 397 | 21317CC | 21317CCK | 1700 | 2200 | 99 | 166 | 2.5 | 5.23 | |
180 | 60 | 3 | 350 | 472 | 22317MB | 22317MBK | 1800 | 2400 | 99 | 166 | 2.5 | 7.4 | |
180 | 60 | 3 | 433 | 556 | 22317CA | 22317CAK | 2500 | 3200 | 99 | 166 | 2.5 | 7.25 | |
180 | 60 | 3 | 443 | 572 | 22317CC | 22317CCK | 2500 | 3200 | 99 | 166 | 2.5 | 7.27 | |
90 | 160 | 40 | 2 | 202 | 286 | 22218MB | 22218MBK | 1900 | 2600 | 100 | 150 | 2 | 4 |
160 | 40 | 2 | 278 | 358 | 22218CA | 22218CAK | 2800 | 3600 | 100 | 150 | 2 | 3.28 | |
160 | 40 | 2 | 278 | 358 | 22218CC | 22218CCK | 2800 | 3600 | 100 | 150 | 2 | 3.38 | |
160 | 52 | 2 | 365 | 492 | 23218CA | 23218CAK | 1700 | 2200 | 100 | 150 | 2 | 4.6 | |
160 | 52 | 2 | 365 | 497 | 23218CC | 23218CCK | 1800 | 2400 | 100 | 150 | 2 | 4.4 | |
190 | 43 | 3 | 330 | 433 | 21318CA | 21318CAK | 1600 | 2200 | 104 | 176 | 2.5 | 6.17 | |
190 | 43 | 3 | 330 | 433 | 21318CC | 21318CCK | 1600 | 2200 | 104 | 176 | 2.5 | 6.17 | |
190 | 64 | 3 | 376 | 558 | 22318MB | 22318MBK | 1700 | 2200 | 104 | 176 | 2.5 | 8.8 | |
190 | 64 | 3 | 489 | 641 | 22318CA | 22318CAK | 2600 | 3000 | 104 | 176 | 2.5 | 8.6 | |
190 | 64 | 3 | 497 | 659 | 22318CC | 22318CCK | 2600 | 3000 | 104 | 176 | 2.5 | 8.63 | |
95 | 170 | 43 | 2.1 | 218 | 362 | 22219MB | 22219MBK | 1800 | 2400 | 107 | 158 | 2.1 | 4.2 |
170 | 43 | 2.1 | 310 | 402 | 22219CA | 22219CAK | 2600 | 3000 | 107 | 158 | 2.1 | 4.1 | |
170 | 43 | 2.1 | 310 | 402 | 22219CC | 22219CCK | 2600 | 3000 | 107 | 158 | 2.1 | 4.2 | |
200 | 45 | 3 | 366 | 500 | 21319CA | 21319CAK | 1700 | 2200 | 109 | 186 | 2.5 | 7.15 | |
200 | 45 | 3 | 366 | 500 | 21319CC | 21319CCK | 1700 | 2200 | 109 | 186 | 2.5 | 7.15 | |
200 | 67 | 3 | 397 | 587 | 22319MB | 22319MBK | 1600 | 2000 | 109 | 186 | 2.5 | 10.3 | |
200 | 67 | 3 | 536 | 709 | 22319CA | 22319CAK | 2200 | 2800 | 109 | 186 | 2.5 | 10.1 | |
200 | 67 | 3 | 546 | 726 | 22319CC | 22319CCK | 2200 | 2800 | 109 | 186 | 2.5 | 9.97 | |
100 | 165 | 52 | 2 | 360 | 540 | 23120CA | 23120CAK | 1600 | 2000 | 110 | 155 | 2 | 5 |
165 | 52 | 2 | 362 | 545 | 23120CC | 23120CCK | 1700 | 2200 | 110 | 155 | 2 | 4.31 | |
150 | 50 | 1.5 | 251 | 448 | 24020CA | 24020CAK30 | 1200 | 1500 | 110 | 140 | 1.5 | 3.035 | |
150 | 50 | 1.5 | 260 | 461 | 24020CC | 24020CCK30 | 1200 | 1500 | 110 | 140 | 1.5 | 3.035 | |
180 | 46 | 2.1 | 229 | 369 | 22220MB | 22220MBK | 1700 | 2200 | 112 | 168 | 2.1 | 5 | |
180 | 46 | 2.1 | 352 | 438 | 22220CA | 22220CAK | 2500 | 3200 | 112 | 168 | 2.1 | 5 | |
180 | 46 | 2.1 | 352 | 448 | 22220CC | 22220CCK | 2600 | 3200 | 112 | 168 | 2.1 | 5.01 | |
180 | 60 | 2.1 | 428 | 637 | 23220CA | 23220CAK | 1600 | 2000 | 112 | 168 | 2.1 | 6.7 | |
180 | 60 | 2.1 | 433 | 649 | 23220CC | 23220CCK | 1600 | 2200 | 112 | 168 | 2.1 | 6.52 | |
215 | 47 | 3 | 397 | 546 | 21320CA | 21320CAK | 1600 | 2000 | 114 | 201 | 2.5 | 8.81 | |
215 | 47 | 3 | 397 | 546 | 21320CC | 21320CCK | 1600 | 2000 | 114 | 201 | 2.5 | 8.81 | |
215 | 73 | 3 | 464 | 688 | 22320MB | 22320MBK | 1800 | 2200 | 114 | 201 | 2.5 | 13 | |
215 | 73 | 3 | 626 | 840 | 22320CA | 22320CA | 2200 | 2600 | 114 | 201 | 2.5 | 13.4 | |
215 | 73 | 3 | 637 | 857 | 22320CC | 22320CC | 2200 | 2600 | 114 | 201 | 2.5 | 12.8 | |
105 | 175 | 56 | 2 | 249 | 494 | 23121MB | 23121MBK | 1400 | 1800 | 119 | 161 | 2.5 | 6.64 |
225 | 49 | 2 | 420 | 575 | 21321CA | 21321CAK | 1500 | 1900 | 119 | 211 | 2.5 | 10 | |
225 | 49 | 2 | 420 | 575 | 21321CC | 21321CCK | 1500 | 1900 | 119 | 211 | 2.5 | 10 | |
110 | 170 | 45 | 2 | 201 | 422 | 23022MB | 23022MBK | 1400 | 1800 | 120 | 160 | 2 | 3.9 |
170 | 45 | 2 | 278 | 461 | 23022CA | 23022CAK | 1500 | 1900 | 120 | 160 | 2 | 3.9 | |
170 | 45 | 2 | 280 | 466 | 23022CC | 23022CCK | 1500 | 1900 | 120 | 160 | 2 | 3.68 | |
180 | 56 | 2 | 270 | 489 | 23122MB | 23122MBK | 1300 | 1700 | 120 | 170 | 2 | 6.1 | |
180 | 56 | 2 | 386 | 613 | 23122CA | 23122CAK | 1300 | 1700 | 120 | 170 | 2 | 6.25 | |
180 | 56 | 2 | 389 | 620 | 23122CC | 23122CCK | 1600 | 2000 | 120 | 170 | 2 | 5.51 | |
180 | 69 | 2 | 472 | 798 | 24122CA | 24122CAK30 | 1600 | 2000 | 120 | 170 | 2 | 6.63 | |
180 | 69 | 2 | 472 | 798 | 24122CC | 24122CCK30 | 1600 | 2000 | 120 | 170 | 2 | 6.63 | |
200 | 53 | 2.1 | 297 | 479 | 22222MB | 22222MBK | 1800 | 2200 | 122 | 188 | 2.1 | 7.4 | |
200 | 53 | 2.1 | 447 | 592 | 22222CA | 22222CAK | 2200 | 3000 | 122 | 188 | 2.1 | 7.2 | |
200 | 53 | 2.1 | 452 | 606 | 22222CC | 22222CCK | 2400 | 3000 | 122 | 188 | 2.1 | 7.32 | |
200 | 70 | 2.1 | 530 | 809 | 23222CA | 23222CAK | 1400 | 1800 | 122 | 188 | 2.1 | 9.7 | |
200 | 70 | 2.1 | 536 | 824 | 23222CC | 23222CCK | 1500 | 1900 | 122 | 188 | 2.1 | 9.46 | |
240 | 50 | 3 | 460 | 635 | 21322CA | 21322CAK | 1400 | 1800 | 124 | 226 | 2.5 | 11.8 | |
240 | 50 | 3 | 474 | 654 | 21322CC | 21322CCK | 1400 | 1800 | 124 | 226 | 2.5 | 11.8 | |
240 | 80 | 3 | 561 | 857 | 22322MB | 22322MBK | 1200 | 1600 | 124 | 226 | 2.5 | 18.1 | |
240 | 80 | 3 | 786 | 993 | 22322CA | 22322CAK | 1800 | 2200 | 124 | 226 | 2.5 | 18 | |
240 | 80 | 3 | 786 | 997 | 22322CC | 22322CCK | 1900 | 2300 | 124 | 226 | 2.5 | 17.5 | |
120 | 180 | 46 | 2 | 218 | 484 | 23024MB | 23024MBK | 1200 | 1600 | 130 | 170 | 2 | 4.3 |
180 | 46 | 2 | 354 | 560 | 23024CA | 23024CAK | 1400 | 1800 | 130 | 170 | 2 | 4.3 | |
180 | 46 | 2 | 359 | 565 | 23024CC | 23024CCK | 1800 | 2200 | 130 | 170 | 2 | 3.98 | |
180 | 60 | 2 | 390 | 700 | 24024CA | 24024CAK30 | 1500 | 2000 | 130 | 170 | 2 | 5.05 | |
180 | 60 | 2 | 391 | 700 | 24024CC | 24024CCK30 | 1500 | 2000 | 130 | 170 | 2 | 5.05 | |
200 | 62 | 2 | 321 | 589 | 23124MB | 23124MBK | 1100 | 1500 | 130 | 190 | 2 | 7.63 | |
200 | 62 | 2 | 531 | 780 | 23124CA | 23124CAK | 1300 | 1700 | 130 | 190 | 2 | 7.63 | |
200 | 62 | 2 | 530 | 780 | 23124CC | 23124CCK | 1400 | 1800 | 130 | 190 | 2 | 7.67 | |
200 | 80 | 2 | 645 | 1028 | 24124CA | 24124CAK30 | 1400 | 1800 | 130 | 190 | 2 | 9.65 | |
200 | 80 | 2 | 645 | 1028 | 24124CC | 24124CCK30 | 1400 | 1800 | 130 | 190 | 2 | 9.65 | |
215 | 58 | 2.1 | 352 | 582 | 22224MB | 22224MBK | 1300 | 1700 | 132 | 203 | 2.1 | 9.2 | |
215 | 58 | 2.1 | 520 | 730 | 22224CA | 22224CAK | 2500 | 2800 | 132 | 203 | 2.1 | 9 | |
215 | 58 | 2.1 | 520 | 730 | 22224CC | 22224CCK | 2500 | 2800 | 132 | 203 | 2.1 | 9.1 | |
215 | 76 | 2.1 | 660 | 968 | 23224CA | 23224CAK | 1300 | 1700 | 132 | 203 | 2.1 | 12 | |
215 | 76 | 2.1 | 668 | 984 | 23224CC | 23224CCK | 1300 | 1700 | 132 | 203 | 2.1 | 11.7 | |
260 | 86 | 3 | 664 | 1022 | 22324MB | 22324MBK | 1100 | 1500 | 134 | 246 | 2.5 | 22 | |
260 | 86 | 3 | 867 | 1154 | 22324CA | 22324CAK | 1700 | 2000 | 134 | 246 | 2.5 | 22 | |
260 | 86 | 3 | 870 | 1195 | 22324CC | 22324CCK | 1900 | 2200 | 134 | 246 | 2.5 | 22.2 | |
130 | 200 | 52 | 2 | 278 | 626 | 23026MB | 23026MBK | 1100 | 1500 | 140 | 190 | 2 | 6.2 |
200 | 52 | 2 | 383 | 644 | 23026CA | 23026CAK | 1200 | 1600 | 140 | 190 | 2 | 6.2 | |
200 | 52 | 2 | 386 | 649 | 23026CC | 23026CCK | 1700 | 2000 | 140 | 190 | 2 | 5.85 | |
200 | 69 | 2 | 472 | 852 | 24026CA | 24026CAK30 | 1400 | 1800 | 140 | 190 | 2 | 7.55 | |
200 | 69 | 2 | 486 | 878 | 24026CC | 24026CCK30 | 1400 | 1800 | 140 | 190 | 2 | 7.55 | |
210 | 64 | 2 | 492 | 812 | 23126CA | 23126CAK | 1300 | 1700 | 140 | 200 | 2 | 8.49 | |
210 | 64 | 2 | 496 | 826 | 23126CC | 23126CCK | 1300 | 1700 | 140 | 200 | 2 | 8.49 | |
210 | 80 | 2 | 585 | 1030 | 24126CA | 24126CAK30 | 1200 | 1600 | 140 | 200 | 2 | 10.3 | |
210 | 80 | 2 | 603 | 1061 | 24126CC | 24126CCK30 | 1300 | 1700 | 140 | 200 | 2 | 10.3 | |
230 | 64 | 3 | 420 | 729 | 22226MB | 22226MBK | 1200 | 1600 | 144 | 216 | 2.5 | 11.2 | |
230 | 64 | 3 | 625 | 864 | 22226CA | 22226CAK | 2000 | 2600 | 144 | 216 | 2.5 | 11.2 | |
230 | 64 | 3 | 625 | 867 | 22226CC | 22226CCK | 2200 | 2600 | 144 | 216 | 2.5 | 11.2 | |
230 | 80 | 3 | 748 | 1092 | 23226CA | 23226CAK | 1200 | 1600 | 144 | 216 | 2.5 | 14 | |
230 | 80 | 3 | 748 | 1112 | 23226CC | 23226CCK | 1200 | 1600 | 144 | 216 | 2.5 | 13.8 | |
280 | 93 | 4 | 744 | 1170 | 22326MB | 22326MBK | 950 | 1300 | 148 | 262 | 3 | 29 | |
280 | 93 | 4 | 970 | 1340 | 22326CA | 22326CAK | 1600 | 1900 | 148 | 262 | 3 | 28.5 | |
280 | 93 | 4 | 994 | 1380 | 22326CC | 22326CCK | 1600 | 1900 | 148 | 262 | 3 | 27.5 | |
140 | 210 | 53 | 2 | 294 | 654 | 23028MB | 23028MBK | 950 | 1300 | 150 | 200 | 2 | 6.7 |
210 | 53 | 2 | 444 | 719 | 23028CA | 23028CAK | 1100 | 1500 | 150 | 200 | 2 | 6.7 | |
210 | 53 | 2 | 450 | 760 | 23028CC | 23028CCK | 1600 | 1900 | 150 | 200 | 2 | 6.31 | |
210 | 69 | 2 | 488 | 895 | 24028CA | 24028CAK30 | 1200 | 1600 | 150 | 200 | 2 | 8.01 | |
210 | 69 | 2 | 503 | 922 | 24028CC | 24028CCK30 | 1300 | 1700 | 150 | 200 | 2 | 8.01 | |
225 | 68 | 2.1 | 410 | 623 | 23128MB | 23128MBK | 950 | 1300 | 152 | 213 | 2.1 | 10.9 | |
225 | 68 | 2.1 | 561 | 953 | 23128CA | 23128CAK | 1100 | 1500 | 152 | 213 | 2.1 | 10.9 | |
225 | 68 | 2.1 | 554 | 932 | 23128CC | 23128CCK | 1200 | 1600 | 152 | 213 | 2.1 | 10.2 | |
225 | 85 | 2.1 | 670 | 1200 | 24128CA | 24128CAK30 | 1100 | 1500 | 152 | 213 | 2.1 | 12.5 | |
225 | 85 | 2.1 | 690 | 1236 | 24128CC | 24128CCK30 | 1200 | 1600 | 152 | 213 | 2.1 | 12.5 | |
250 | 68 | 3 | 492 | 829 | 22228MB | 22228MBK | 1000 | 1400 | 154 | 236 | 2.5 | 14.5 | |
250 | 68 | 3 | 720 | 990 | 22228CA | 22228CAK | 1700 | 2200 | 154 | 236 | 2.5 | 14.5 | |
250 | 68 | 3 | 720 | 990 | 22228CC | 22228CCK | 1800 | 2200 | 154 | 236 | 2.5 | 14.2 | |
250 | 88 | 3 | 826 | 1320 | 23228CA | 23228CAK | 1000 | 1400 | 154 | 236 | 2.5 | 18.5 | |
250 | 88 | 3 | 836 | 1340 | 23228CC | 23228CCK | 1100 | 1500 | 154 | 236 | 2.5 | 18.1 | |
300 | 102 | 4 | 850 | 1380 | 22328MB | 22328MBK | 900 | 1200 | 158 | 282 | 3 | 36 | |
300 | 102 | 4 | 1140 | 1620 | 22328CA | 22328CAK | 1400 | 1500 | 158 | 282 | 3 | 34.5 | |
300 | 102 | 4 | 1164 | 1660 | 22328CC | 22328CCK | 1400 | 1700 | 158 | 282 | 3 | 34.6 | |
150 | 225 | 56 | 2.1 | 338 | 790 | 23030MB | 23030MBK | 900 | 1200 | 162 | 213 | 2.1 | 8.14 |
225 | 56 | 2.1 | 451 | 790 | 23030CA | 23030CAK | 1100 | 1400 | 162 | 213 | 2.1 | 8.14 | |
225 | 56 | 2.1 | 445 | 772 | 23030CC | 23030CCK | 1400 | 1800 | 162 | 213 | 2.1 | 7.74 | |
225 | 75 | 2.1 | 570 | 1070 | 24030CA | 24030CAK30 | 1100 | 1400 | 162 | 213 | 2.1 | 10.6 | |
225 | 75 | 2.1 | 587 | 1100 | 24030CC | 24030CCK30 | 1200 | 1500 | 162 | 213 | 2.1 | 10.1 | |
250 | 80 | 2.1 | 527 | 1110 | 23130MB | 23130MBK | 850 | 1100 | 162 | 238 | 2.1 | 16.1 | |
250 | 80 | 2.1 | 747 | 1267 | 23130CA | 23130CAK | 1000 | 1300 | 162 | 238 | 2.1 | 16.1 | |
250 | 80 | 2.1 | 760 | 1288 | 23130CC | 23130CCK | 1100 | 1400 | 162 | 238 | 2.1 | 15.7 | |
250 | 100 | 2.1 | 890 | 1600 | 24130CA | 24130CAK30 | 1000 | 1300 | 162 | 238 | 2.1 | 19 | |
250 | 100 | 2.1 | 910 | 1650 | 24130CC | 24130CCK30 | 1100 | 1400 | 162 | 238 | 2.1 | 19 | |
270 | 73 | 3 | 523 | 900 | 22230MB | 22230MBK | 1200 | 1700 | 164 | 256 | 2.5 | 18.5 | |
270 | 73 | 3 | 970 | 1330 | 22230CA | 22230CAK | 1800 | 2000 | 164 | 256 | 2.5 | 18.6 | |
270 | 73 | 3 | 970 | 1130 | 22230CC | 22230CCK | 1800 | 2000 | 164 | 256 | 2.5 | 18 | |
270 | 96 | 3 | 963 | 1560 | 23230CA | 23230CAK | 950 | 1300 | 164 | 256 | 2.5 | 24 | |
270 | 96 | 3 | 976 | 1586 | 23230CC | 23230CCK | 1100 | 1400 | 164 | 256 | 2.5 | 23.2 | |
320 | 108 | 4 | 1050 | 1790 | 22330MB | 22330MBK | 850 | 1100 | 168 | 302 | 3 | 43 | |
320 | 108 | 4 | 1270 | 1850 | 22330CA | 22330CAK | 1200 | 1500 | 168 | 302 | 3 | 42.5 | |
320 | 108 | 4 | 1308 | 1905 | 22330CC | 22330CCK | 1200 | 1500 | 168 | 302 | 3 | 42 | |
160 | 240 | 60 | 2.1 | 379 | 850 | 23032MB | 23032MBK | 850 | 1100 | 172 | 228 | 2.1 | 10 |
240 | 60 | 2.1 | 515 | 900 | 23032CA | 23032CAK | 1000 | 1300 | 172 | 228 | 2.1 | 10 | |
240 | 60 | 2.1 | 523 | 915 | 23032CC | 23032CCK | 1300 | 1700 | 172 | 228 | 2.1 | 9.43 | |
240 | 80 | 2.1 | 652 | 1230 | 24032CA | 24032CAK30 | 1000 | 1300 | 172 | 228 | 2.1 | 12.2 | |
240 | 80 | 2.1 | 670 | 1260 | 24032CC | 24032CCK30 | 1100 | 1400 | 172 | 228 | 2.1 | 12.2 | |
270 | 86 | 2.1 | 536 | 1140 | 23132MB | 23132MBK | 800 | 1000 | 172 | 258 | 2.1 | 19.7 | |
270 | 86 | 2.1 | 870 | 1460 | 23132CA | 23132CAK | 900 | 1200 | 172 | 258 | 2.1 | 19.7 | |
270 | 86 | 2.1 | 870 | 1480 | 23132CC | 23132CCK | 1000 | 1300 | 172 | 258 | 2.1 | 19.8 | |
270 | 109 | 2.1 | 1040 | 1880 | 24132CA | 24132CAK30 | 900 | 1200 | 172 | 258 | 2.1 | 24.6 | |
270 | 109 | 2.1 | 1070 | 1930 | 24132CC | 24132CCK30 | 1000 | 1300 | 172 | 258 | 2.1 | 24.4 | |
290 | 80 | 3 | 660 | 1170 | 22232MB | 22232MBK | 1500 | 1700 | 174 | 276 | 2.5 | 22.2 | |
290 | 80 | 3 | 895 | 1280 | 22232CA | 22232CAK | 1700 | 1900 | 174 | 276 | 2.5 | 23.1 | |
290 | 80 | 3 | 901 | 1320 | 22232CC | 22232CCK | 1200 | 1900 | 174 | 276 | 2.5 | 22.9 | |
290 | 104 | 3 | 1112 | 1810 | 23232CA | 23232CAK | 900 | 1200 | 174 | 276 | 2.5 | 30 | |
290 | 104 | 3 | 1120 | 1830 | 23232CC | 23232CCK | 1100 | 1400 | 174 | 276 | 2.5 | 29.4 | |
340 | 114 | 4 | 1370 | 1820 | 22332MB | 22332MBK | 1100 | 1300 | 178 | 322 | 3 | 51 | |
170 | 260 | 67 | 2.1 | 458 | 1040 | 23034MB | 23034MBK | 800 | 1000 | 182 | 248 | 2.1 | 13 |
260 | 67 | 2.1 | 726 | 1112 | 23034CA | 23034CAK | 900 | 1200 | 182 | 248 | 2.1 | 13 | |
260 | 67 | 2.1 | 733 | 1133 | 23034CC | 23034CCK | 1200 | 1600 | 182 | 248 | 2.1 | 12.8 | |
260 | 90 | 2.1 | 792 | 1520 | 24034CA | 24034CAK30 | 900 | 1200 | 182 | 248 | 2.1 | 16.7 | |
260 | 90 | 2.1 | 816 | 1565 | 24034CC | 24034CCK30 | 1000 | 1300 | 182 | 248 | 2.1 | 16.7 | |
280 | 88 | 2.1 | 911 | 1565 | 23134CA | 23134CAK | 850 | 1100 | 182 | 268 | 2.1 | 21.1 | |
280 | 88 | 2.1 | 927 | 1590 | 23134CC | 23134CCK | 1000 | 1300 | 182 | 268 | 2.1 | 21.1 | |
280 | 109 | 2.1 | 1070 | 1930 | 24134CA | 24134CAK30 | 900 | 1200 | 182 | 268 | 2.1 | 25.5 | |
280 | 109 | 2.1 | 1100 | 1980 | 24134CC | 24134CCK30 | 1000 | 1300 | 182 | 268 | 2.1 | 25.5 | |
310 | 86 | 4 | 740 | 1330 | 22234MB | 22234MBK | 1100 | 1300 | 188 | 292 | 3 | 29 | |
310 | 86 | 4 | 975 | 1500 | 22234CA | 22234CAK | 1300 | 1600 | 188 | 292 | 3 | 29 | |
310 | 86 | 4 | 1002 | 1540 | 22234CC | 22234CCK | 1100 | 1400 | 188 | 292 | 3 | 28.1 | |
310 | 110 | 4 | 1200 | 2030 | 23234CA | 23234CAK | 800 | 1100 | 188 | 292 | 3 | 35.7 | |
310 | 110 | 4 | 1230 | 2090 | 23234CC | 23234CCK | 900 | 1200 | 188 | 292 | 3 | 35.7 | |
360 | 120 | 4 | 1380 | 2120 | 22334CA | 22334CAK | 1100 | 1200 | 188 | 342 | 3 | 60 | |
180 | 280 | 74 | 2.1 | 556 | 1260 | 23036MB | 23036MBK | 750 | 950 | 192 | 268 | 2.1 | 17.6 |
280 | 74 | 2.1 | 830 | 1350 | 23036CA | 23036CAK | 900 | 1100 | 192 | 268 | 2.1 | 17.6 | |
280 | 74 | 2.1 | 840 | 1350 | 23036CC | 23036CCK | 1200 | 1400 | 192 | 268 | 2.1 | 16.9 | |
280 | 100 | 2.1 | 928 | 1820 | 24036CA | 24036CAK30 | 900 | 1100 | 192 | 268 | 2.1 | 22.1 | |
280 | 100 | 2.1 | 955 | 1870 | 24036CC | 24036CCK30 | 1100 | 1300 | 192 | 268 | 2.1 | 22.1 | |
300 | 96 | 3 | 950 | 1620 | 23136MB | 23136MBK | 750 | 900 | 194 | 286 | 2.5 | 27.1 | |
300 | 96 | 3 | 1060 | 1850 | 23136CA | 23136CAK | 800 | 1000 | 194 | 286 | 2.5 | 27.1 | |
300 | 96 | 3 | 1080 | 1880 | 23136CC | 23136CCK | 900 | 1200 | 194 | 286 | 2.5 | 26.9 | |
300 | 118 | 3 | 1210 | 2220 | 24136CA | 24136CAK30 | 800 | 1000 | 194 | 286 | 2.5 | 32 | |
300 | 118 | 3 | 1240 | 2280 | 24136CC | 23136CCK30 | 900 | 1200 | 194 | 286 | 2.5 | 32 | |
320 | 86 | 4 | 757 | 1410 | 22236MB | 22236MBK | 900 | 1100 | 198 | 302 | 3 | 30 | |
320 | 86 | 4 | 1010 | 1590 | 22236CA | 22236CAK | 1300 | 1500 | 198 | 302 | 3 | 30 | |
320 | 86 | 4 | 1040 | 1630 | 22236CC | 22236CCK | 1100 | 1300 | 198 | 302 | 3 | 29.4 | |
320 | 112 | 4 | 1280 | 2170 | 23236CA | 23236CAK | 1000 | 1200 | 198 | 302 | 3 | 37.9 | |
320 | 112 | 4 | 1310 | 2230 | 23236CC | 23236CCK | 1100 | 1300 | 198 | 302 | 3 | 37.9 | |
380 | 126 | 4 | 1490 | 2330 | 22336CA | 22336CAK | 1000 | 1100 | 198 | 362 | 3 | 70 | |
190 | 290 | 75 | 2.1 | 570 | 1260 | 23038MB | 23038MBK | 700 | 900 | 202 | 278 | 2.1 | 20 |
290 | 75 | 2.1 | 867 | 1490 | 23038CA | 23038CAK | 1000 | 1200 | 202 | 278 | 2.1 | 20 | |
290 | 75 | 2.1 | 877 | 1520 | 23038CC | 23038CCK | 1100 | 1400 | 202 | 278 | 2.1 | 17.7 | |
290 | 100 | 2.1 | 975 | 1910 | 24038CA | 24038CAK30 | 800 | 1100 | 202 | 278 | 2.1 | 23 | |
290 | 100 | 2.1 | 1004 | 1960 | 24038CC | 24038CCK30 | 900 | 1200 | 202 | 278 | 2.1 | 23 | |
320 | 104 | 3 | 811 | 1880 | 23138MB | 23138MBK | 670 | 850 | 204 | 306 | 2.5 | 35.3 | |
320 | 104 | 3 | 1200 | 2120 | 23138CA | 23138CAK | 750 | 1000 | 204 | 306 | 2.5 | 35.3 | |
320 | 104 | 3 | 1230 | 2180 | 23138CC | 23138CCK | 850 | 1100 | 204 | 306 | 2.5 | 17.7 | |
320 | 128 | 3 | 1410 | 2590 | 24138CA | 24138CAK30 | 700 | 1000 | 204 | 306 | 2.5 | 40.2 | |
320 | 128 | 3 | 1450 | 2660 | 24138CC | 24138CCK30 | 850 | 1100 | 204 | 306 | 2.5 | 40.2 | |
340 | 92 | 4 | 1100 | 1655 | 22238CA | 22238CAK | 1200 | 1500 | 208 | 322 | 3 | 35.3 | |
340 | 120 | 4 | 1450 | 2490 | 23238CA | 23238CAK | 700 | 1000 | 208 | 322 | 3 | 46.1 | |
340 | 120 | 4 | 1490 | 2550 | 23238CC | 23238CCK | 800 | 1100 | 208 | 322 | 3 | 46.1 | |
400 | 132 | 5 | 1730 | 2600 | 22338CA | 22338CAK | 900 | 1000 | 212 | 378 | 4 | 81 | |
200 | 310 | 82 | 2.1 | 597 | 1340 | 23040MB | 23040MBK | 670 | 850 | 212 | 298 | 2.1 | 24 |
310 | 82 | 2.1 | 890 | 1650 | 23040CA | 23040CAK | 900 | 1100 | 212 | 298 | 2.1 | 24 | |
310 | 82 | 2.1 | 916 | 1690 | 23040CC | 23040CCK | 1000 | 1300 | 212 | 298 | 2.1 | 22.7 | |
310 | 109 | 2.1 | 1120 | 2220 | 24040CA | 24040CAK30 | 670 | 850 | 212 | 298 | 2.1 | 29.3 | |
310 | 109 | 2.1 | 1150 | 2280 | 24040CC | 24040CCK30 | 850 | 1100 | 212 | 298 | 2.1 | 29.3 | |
340 | 112 | 3 | 937 | 2070 | 23140MB | 23140MBK | 630 | 800 | 214 | 326 | 2.5 | 50.7 | |
340 | 112 | 3 | 1420 | 2530 | 23140CC | 23140CCK | 800 | 1000 | 214 | 326 | 2.5 | 47.6 | |
340 | 140 | 3 | 1480 | 2550 | 24140MB | 24140KMB30 | 700 | 900 | 214 | 326 | 2.5 | 49.55 | |
340 | 140 | 3 | 1620 | 3030 | 24140CC | 24140CCK30 | 800 | 1000 | 214 | 326 | 2.5 | 49.9 | |
360 | 98 | 4 | 1100 | 1890 | 22240CA | 22240CAK | 1100 | 1400 | 218 | 342 | 3 | 47.7 | |
360 | 128 | 4 | 1650 | 2870 | 23240CC | 23240CCK | 750 | 1000 | 218 | 342 | 3 | 55.4 | |
420 | 138 | 5 | 1730 | 2800 | 22340CA | 22340CAK | 730 | 900 | 222 | 398 | 4 | 94 | |
220 | 340 | 90 | 3 | 783 | 1860 | 23044MB | 23044MBK | 600 | 750 | 234 | 326 | 2.5 | 28.8 |
340 | 90 | 3 | 1090 | 2040 | 23044CC | 23044CCK | 950 | 1200 | 234 | 326 | 2.5 | 29.7 | |
340 | 118 | 3 | 1370 | 2760 | 24044CC | 24044CCK30 | 750 | 1000 | 234 | 326 | 2.5 | 38.1 | |
370 | 120 | 4 | 1060 | 2420 | 23144MB | 23144MBK | 600 | 750 | 238 | 352 | 3 | 55 | |
370 | 120 | 4 | 1610 | 2900 | 23144CC | 23144CCK | 700 | 950 | 238 | 352 | 3 | 51.5 | |
370 | 150 | 4 | 1900 | 3580 | 24144CC | 24144CCK30 | 700 | 950 | 238 | 352 | 3 | 62.3 | |
400 | 108 | 4 | 1500 | 2380 | 22244CA | 22244CAK | 730 | 900 | 238 | 382 | 3 | 61.5 | |
400 | 144 | 4 | 2130 | 3720 | 23244CC | 23244CCK | 670 | 900 | 238 | 382 | 3 | 78.5 | |
460 | 145 | 5 | 2140 | 3290 | 22344CA | 22344CAK | 660 | 800 | 242 | 438 | 4 | 120 | |
240 | 360 | 92 | 3 | 816 | 2120 | 23048MB | 23048MBK | 530 | 670 | 254 | 346 | 2.5 | 35.5 |
360 | 92 | 3 | 1160 | 2220 | 23048CC | 23048CCK | 850 | 1100 | 254 | 346 | 2.5 | 32.4 | |
360 | 118 | 3 | 1440 | 2930 | 24048CC | 24048CCK30 | 700 | 950 | 254 | 346 | 2.5 | 40.8 | |
400 | 128 | 4 | 1230 | 2910 | 23148MB | 23148MBK | 500 | 630 | 258 | 382 | 3 | 55.5 | |
400 | 128 | 4 | 1840 | 3310 | 23148CC | 23148CCK | 670 | 850 | 258 | 382 | 3 | 63.7 | |
400 | 160 | 4 | 2160 | 4090 | 24148CC | 24148CCK30 | 670 | 850 | 258 | 382 | 3 | 76.9 | |
440 | 160 | 4 | 2560 | 4620 | 23248CC | 23248CCK | 630 | 800 | 258 | 422 | 3 | 107.3 | |
500 | 155 | 5 | 2580 | 3640 | 22348CA | 22348CAK | 600 | 750 | 262 | 478 | 4 | 153 | |
260 | 400 | 104 | 4 | 1030 | 2520 | 23052CA | 23052CAK | 500 | 630 | 278 | 382 | 3 | 515 |
400 | 104 | 4 | 1460 | 2850 | 23052CC | 23052CCK | 900 | 1100 | 278 | 382 | 3 | 47.7 | |
400 | 140 | 4 | 1840 | 3850 | 24052CC | 24052CCK30 | 630 | 850 | 278 | 382 | 3 | 62.4 | |
440 | 144 | 4 | 1470 | 3410 | 23152MB | 23152MBK | 450 | 560 | 278 | 422 | 3 | 95.3 | |
440 | 144 | 4 | 2270 | 4190 | 23152CC | 23152CCK | 600 | 800 | 278 | 422 | 3 | 88.2 | |
440 | 180 | 4 | 2730 | 5330 | 24152CC | 24152CCK30 | 600 | 800 | 278 | 422 | 3 | 107.6 | |
540 | 165 | 6 | 2860 | 4310 | 22352CA | 22352CAK | 480 | 700 | 288 | 512 | 5 | 191 | |
280 | 420 | 106 | 4 | 1110 | 2760 | 23056CA | 23056CAK | 450 | 560 | 298 | 402 | 3 | 62 |
420 | 106 | 4 | 1580 | 3030 | 23056CC | 23056CCK | 700 | 900 | 298 | 402 | 3 | 50.9 | |
420 | 140 | 4 | 1960 | 4100 | 24056CC | 24056CCK | 600 | 800 | 298 | 402 | 3 | 65.8 | |
460 | 146 | 5 | 1635 | 3730 | 23156CA | 23156CAK | 430 | 530 | 302 | 438 | 4 | 103 | |
460 | 146 | 5 | 2380 | 4410 | 23156CC | 23156CCK | 560 | 750 | 302 | 438 | 4 | 94.1 | |
460 | 180 | 5 | 2810 | 5480 | 24156CC | 24156CCK30 | 560 | 750 | 302 | 438 | 4 | 113.2 | |
500 | 130 | 5 | 2150 | 3480 | 22256MB | 22256MBK | 800 | 900 | 302 | 478 | 4 | 112.3 | |
580 | 175 | 6 | 3490 | 5200 | 22356CA | 22356CAK | 450 | 600 | 308 | 552 | 5 | 238 | |
300 | 460 | 118 | 4 | 1290 | 3160 | 23060MB | 23060MBK | 430 | 530 | 318 | 442 | 3 | 75.2 |
460 | 118 | 4 | 1910 | 3800 | 23060CC | 23060CCK | 670 | 850 | 318 | 442 | 3 | 71.4 | |
460 | 160 | 4 | 2430 | 5160 | 24060CC | 24060CCK30 | 530 | 700 | 318 | 442 | 3 | 94.1 | |
500 | 160 | 5 | 2250 | 4550 | 23160MB | 23160MBK | 500 | 700 | 322 | 478 | 4 | 133 | |
540 | 140 | 5 | 2520 | 2950 | 22260CA | 22260CAK | 700 | 850 | 322 | 518 | 4 | 134 |
