Spherical Sealed Spherical Roller Bearings thrust bearings

SYSTEM DESCRIPTION:

TECHNICAL DRAWING:

PREV：Overview Of Spherical Roller Bearings NEXT：Spherical Sealed Spherical Roller Bearings Bearings ：20000 Series

PRODUCT DETAILS:

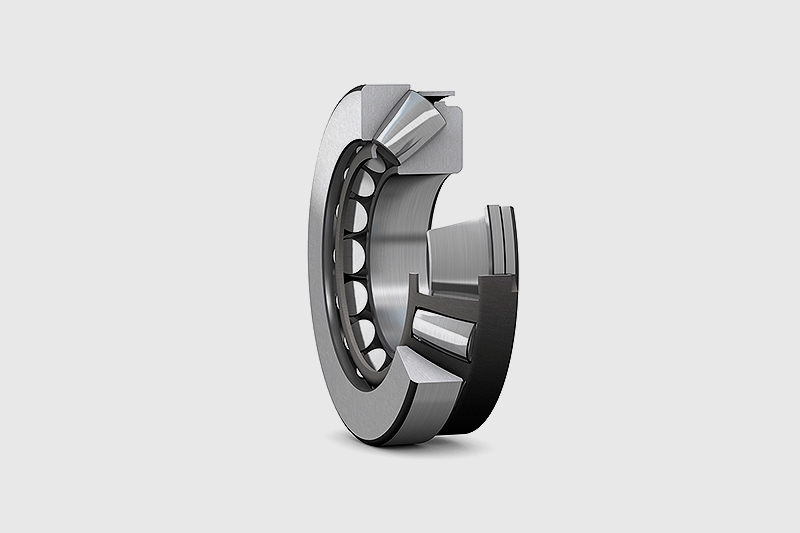

Spherical roller thrust bearings have specially designed raceways and asymmetrical rollers. The bearings can accommodate axial loads acting in one direction and simultaneously acting radial loads. The load is transmitted between the raceways via the rollers at an angle to the bearing axis, while the flange guides the rollers.

Dimensions			Basic load ratings		Speed ratings		Bearing No.
Dimensions			dynamic	static	Reference speed	Limiting speed
d[mm]	D[mm]	H[mm]	C[kN]	C0[kN]	[r/min]	[r/min]
60	130	42	390	915	2800	5000	29412 E
65	140	45	455	1080	2600	4800	29413 E
70	150	48	520	1250	2400	4300	29414 E
75	160	51	600	1430	2400	4000	29415 E
80	170	54	670	1630	2200	3800	29416 E
85	150	39	380	1060	2400	4000	29317 E
85	180	58	735	1800	2000	3600	29417 E
90	155	39	400	1080	2400	4000	29318 E
90	190	60	815	2000	1900	3400	29418 E
100	170	42	465	1290	2200	3600	29320 E
100	210	67	980	2500	1700	3000	29420 E
110	190	48	610	1730	1900	3200	29322 E
110	230	73	1180	3000	1600	2800	29422 E
120	210	54	765	2120	1700	2800	29324 E
120	250	78	1370	3450	1500	2600	29424 E
130	225	58	865	2500	1600	2600	29326 E
130	270	85	1560	4050	1300	2400	29426 E
140	240	60	980	2850	1500	2600	29328 E
140	280	85	1630	4300	1300	2400	29428 E
150	215	39	408	1600	1800	2800	29230 E
	250	60	1000	2850	1500	2400	29330 E
	300	90	1860	5100	1200	2200	29430 E
160	270	67	1180	3450	1300	2200	29332 E
160	320	95	2080	5600	1100	2000	29432 E
170	280	67	1200	3550	1300	2200	29334 E
170	340	103	2360	6550	1100	1900	29434 E
180	250	42	495	2040	1600	2600	29236 E
	300	73	1430	4300	1200	2000	29336 E
	360	109	2600	7350	1000	1800	29436 E
190	320	78	1630	4750	1100	1900	29338 E
190	380	115	2850	8000	950	1700	29438 E
200	280	48	656	2650	1400	2200	29240 E
	340	85	1860	5500	1000	1700	29340 E
	400	122	3200	9000	850	1600	29440 E
220	300	48	690	3000	1300	2200	29244 E
	360	85	2000	6300	1000	1700	29344 E
	420	122	3350	9650	850	1500	29444 E
240	340	60	799	3450	1100	1800	29248
	380	85	2040	6550	1000	1600	29348 E
	440	122	3400	10200	850	1500	29448 E
260	360	60	817	3650	1100	1700	29252
	420	95	2550	8300	850	1400	29352 E
	480	132	4050	12900	750	1300	29452 E
280	380	60	863	4000	1000	1700	29256
	440	95	2550	8650	850	1400	29356 E
	520	145	4900	15300	670	1200	29456 E
300	420	73	1070	4800	900	1400	29260
	480	109	3100	10600	750	1200	29360 E
	540	145	5000	16600	670	1200	29460 E
